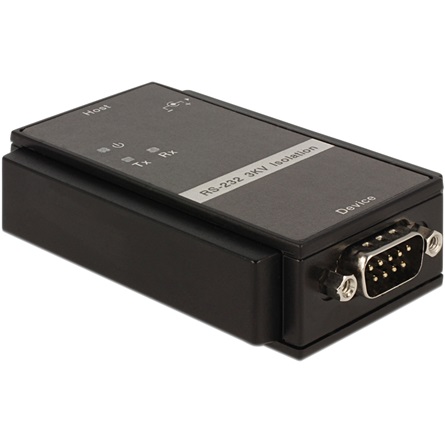

Delock Serial RS-232 M/F izolátor 3kV fekete

Description
The Delock RS-232 converter separates the electrical connection between Host-PC and USB device. The galvanic isolation avoids the disturbing noises in the audio field and inexact measuring results in the laboratory field.

Specification
• Connector:
  Host:     1 x Sub-D 9 pin Serial RS-232 female
  Device: 1 x Sub-D 9 pin Serial RS-232 male
                1 x DC female port for 1.3 x 3.5 mm
• Data transfer rate up to 1 Mb/s
• LED indicators for status TX / RX and power supply
• 3 kV optical isolation
• ± 15 kV ESD protection for all signal pins
• Power consumption: 52 mA / 1248 mW
• Power supply via external provided power supply or pin 9 of
  the serial interface
• Operating temperature: - 30° ~ 75° C
• Storage temperature: - 40° ~ 85° C
• Relative humidity: 5 ~ 95 % (not condensing)
• Housing: plastic
• Dimension (LxWxH): ca. 88 x 54 x 22 mm
• OS independent, no driver installation required

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1 A
• Output: 12 V / 1 A
• Ground outside, plus inside
• Dimensions:
    inside: ø ca. 1.3 mm
    outside: ø ca. 3.5 mm
    length: ca. 9.5 mm

System requirements
• Device with one free RS-232 interface

Package content
• Converter
• Power supply
• Mounting set for DIN rail
• User manual

Package
• Box
