Delock M.2 NGFF -> SATA 22pin F/M konverter

Description

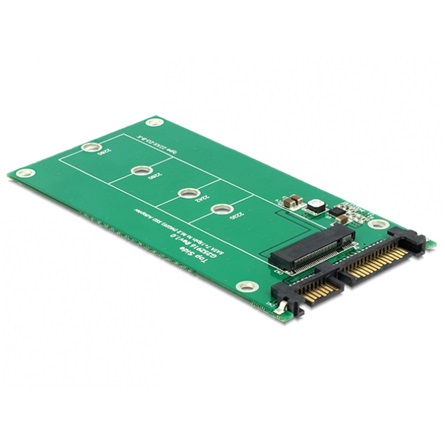

This Delock converter enables you to connect a M.2 NGFF SSD in 2280, 2260, 2242 and 2230 format. The converter can be installed into your system internally through an SATA 22 pin interface.

Specification
• Connector:
  SATA 22 pin male > 67 pin M.2 NGFF key B slot
• Interface: SATA
• Supports M.2 NGFF modules in format 2280, 2260, 2242
  and 2230 with key B or key B+M based on SATA
• Maximum height of the components on the module: 1.35 mm,
  double-sided assembly possible
• Bootable
• Data transfer rate up to 6 Gb/s
• Dimensions (LxWxH): ca. 100 x 51 x 5 mm
• OS independent, no driver installation necessary

System requirements
• A free SATA 22 pin interface

Package content
• Converter
• 1 x fixing screw for M.2 module

Package
• Box
