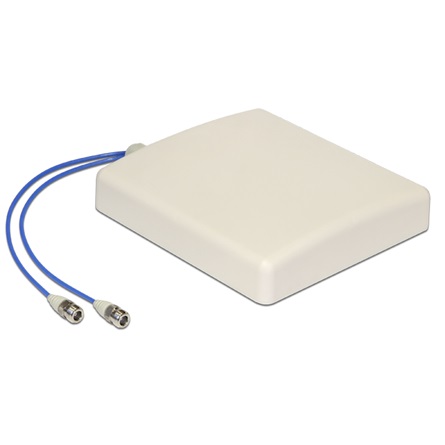

Delock LTE MIMO antenna

Description
This LTE MIMO antenna can be installed indoors or outdoors and take advantage accordingly bands for LTE. She is completely compatible to UMTS, GSM, Bluetooth and WLAN 2.4 GHz.

Special features

LTE Band:	1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/23/20/25
Frequency range:	698 ~ 960 MHz + 1710 ~2700 MHz
Gain:	7 dBi

Specification
• Connector: 2 x N jack
• LTE Band 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/20/23/25
• UMTS / GSM / Bluetooth / WLAN 2.4 GHz
• Gain: 7 dBi
• Horizontal Beamwidth: 75°
• Vertical Beamwidth: 65°
• Polarisation: linear vertical
• Impedance: 50 Ohm
• VSWR: 1.5 max.
• Cable type: RG141
• Cable length: ca. 30 cm
• Operating temperature: -10 °C ~ 55 °C
• ABS UV resistant
• Protection class: IP 55
• Including wall/pole mounting kit
• Weight: 0.9 kg
• Dimension: ca. 237.5 x 229.5 x 50.0 mm

Package content
• LTE MIMO antenna

Package
• White Box
