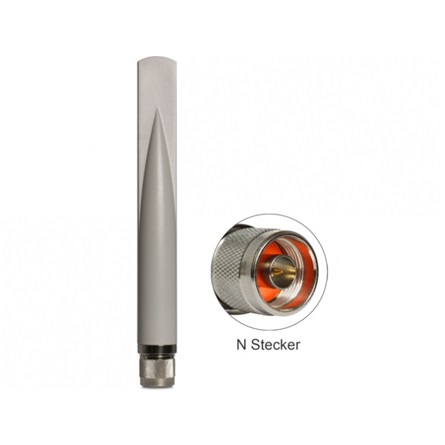

Delock GSM/UMTS N antenna

Description
This GSM/UMTS/LTE antenna can be connected to your GSM/UMTS/LTE device with N connector in order to receive or to send a signal.

Specification
• N plug screw interface
• Frequency range: 825 ~ 960 MHz, 1710 ~ 2170 MHz
• Peak gain:             2.5 dBi,               2.4 dBi
• Average gain:       1.2 dBi,                0 dBi
• VSWR:                   2.5: 1 max           2.0: 1 max.
• LTE band 1/2/3/4/5/8/9/10/25
• Polarisation linear vertical
• Impedance: 50 Ohm
• Housing material: ABS UV protected
• Operating temperature: -40 °C ~ 80 °C
• Length: 166.5 mm
• Ø top:    18.30 mm
• Ø base: 22.50 mm
• Survival wind speed: 216 km/h

Package content
• GSM UMTS antenna

Package
• Poly bag
