Delock Delock LTE antenna

Description

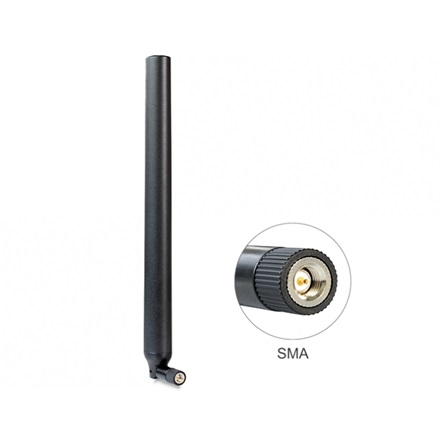

This UMTS/LTE antenna can be connected to your UMTS/LTE device with SMA connector in order to receive or to send a signal.

Specification
• SMA male screw interface
• With flexible joint, rotatable
• Frequency range: 791 ~ 894 MHz,       1920 ~ 2170 MHz
• Peak gain:             0.1 ~ 1.2 dBi,             3 ~ 4.5 dBi
• Average gain:        >- 2,4 dBi,                   >- 2,1 dBi
• VSWR:                    3.0 : 1 max.                2.0 : 1 max.
• LTE band 1/2/3/4/9/20
• UMTS
• Polarization: linear, vertical
• Impedance: 50 Ohm
• ABS UV resistant
• Operating temperature: -10 °C to +55 °C
• Dimension: with flexible joint: 296.1 mm

System requirements
• UMTS/LTE device with SMA jack

Package content
• Antenna

Package
• Poly bag
