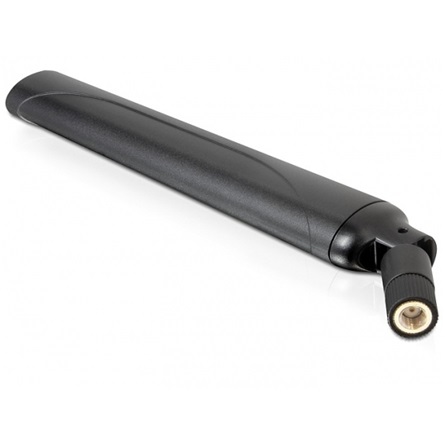

Delock Delock LTE antenna

Description
This GSM/UMTS/LTE antenna can be connected to your GSM/UMTS/LTE device with RP-SMA connector in order to receive or to send a signal.

Specification
• RP-SMA male screw interface
• With flexible joint, rotatable
• Frequency range:   790 ~   870 MHz,  -0.9 ~ 0.6 dBi,
                               1710 ~ 1880 MHz,   0.7 ~ 1.8 dBi,
                                1920 ~ 2170 MHz,  1.3 ~ 1.9 dBi,
                                2500 ~ 2700 MHz,  0.9 ~ 2.3 dBi
• LTE band 1/3/7/9/20
• GSM1800/UMTS/
• VSWR: 4.0 : 1 Max.
• Polarization: linear, vertical
• Impedance: 50 Ohm
• ABS UV resistant
• Operating temperature: -10 °C ~ 55 °C
• Dimension: with flexible joint      197.10 mm
                     without flexible joint 167.00 mm
• Ø:                                                  25.40 mm (top)
                                                        28.00 mm (body)
                                                        13.50 mm (base)

Package content
• LTE RP-SMA antenna

Package
• Poly bag
