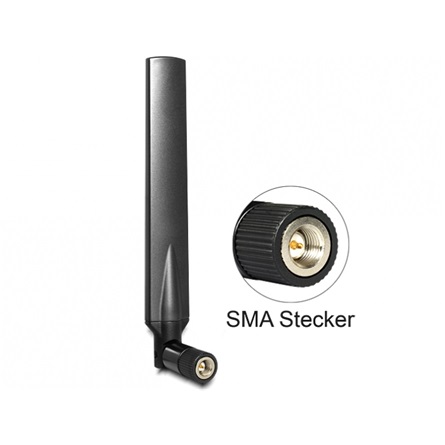

Delock LTE antenna

Description
This GSM/UMTS/LTE antenna can be connected to your GSM/UMTS/LTE device with SMA connector in order to receive or to send a signal.

Specification
• SMA male screw interface
• With flexible joint, rotatable
• Frequency range: 791 ~ 960 MHz, 1710 ~ 2170 MHz, 2570 ~ 2620 MHz
• Peak gain:             1 ~ 3,5 dBi,        2 ~ 4 dBi,               3 ~ 4 dBi
• LTE band 1/2/3/4/7/9/10/13/14/17/20/25
• GSM1800/UMTS
• VSWR: 4.0 : 1 max.
• Polarization: linear, vertical
• Impedance: 50 Ohm
• ABS UV resistant
• Operating temperature: -10 °C ~o 55 °C
• Dimension: with flexible joint      163.10 mm,
                     without flexible joint 137.00 mm,
• Ø:                                                  19.60 mm (top)
                                                        13,50 mm (base)

Package content
• Antenna

Package
• Poly bag
