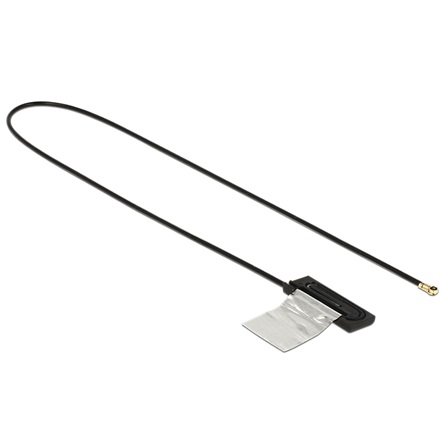

Delock WLAN Antenna MHF IV /HSC MXHP32 Compatible Plug 802.11 ac/a/h/b/g/n CCD 1 dBi 250 mm internal

Garancia: 4 Hónap Leírás This WLAN antenna by Delock can be integrated into devices with MHF IV /HSC MXHP32 compatible connection to receive and send signals.
Muszaki adatok
• Connector: miniature RF coaxial plug MHF IV/ HSC MXHP32 compatible
• Frequenzy range:
2.4000 - 2.4835 GHz
5.1500 - 5.8750 GHz
• Antenna gain: 1 dBi
• Impedance: 50 Ohm
• VSWR: 2.5
• Operating temperature: -10 °C ~ 55 °C
• Dimension (LxBxH): 20.00 x 7.00 x 1.90 mm
• Cable category: coaxial
• Cable type: 1.13
• Cable length: 250 mm
• Cable diameter: 1.13 mm
Rendszerkövetelmények
• Device with free MHF IV/ HSC MXHP32 compatible connector
A csomag tartalma
• WLAN antenna
Csomag
• Poly bag
Gyártó: Delock
