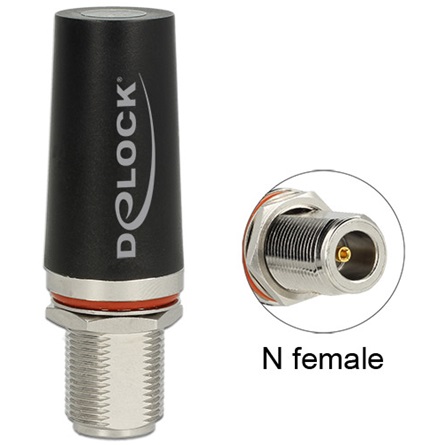

Delock LTE Antenna N Jack 3 dBi omnidirectional fixed black roof mount outdoor

Garancia: 4 Hónap Leírás This LTE antenna by Delock can be installed outdoors or indoors and can take advantage of all four LTE bands. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.
Muszaki adatok
• Connector: N jack
• LTE Band 1 - 10, 12 - 20, 23, 25 - 30, 33 - 41, 43, 44
• Frequency range: 690 - 960, 1710 - 2170, 2500 - 2700 Mhz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 3 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Operating temperature: -40 °C ~ 70 °C
• Housing: ABS UV resistant
• Protection class: IP67
• Screw mounting hole diameter: 13.5 mm
• Colour: black
• Dimensions (LxWxH): ca. 66 x 22 x 22 mm
Rendszerkövetelmények
• Device with free N connector
• Metal ground plane on mounting point
A csomag tartalma
• LTE antenna
• Nut and washer
Csomag
• Poly bag
Gyártó: Delock
