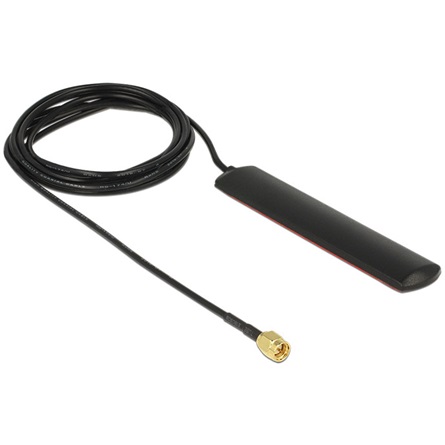

Delock GSM UMTS LTE WLAN 2.4 GHz Antenna SMA Plug 2 dBi omnidirectional adhesive mounting

Garancia: 4 Hónap Leírás This GSM UMTS LTE WLAN 2.4 GHz antenna by Delock can be installed indoors and takes advantage of different bands. It is completely compatible to Bluetooth, WLAN 2.4 GHz, ZigBee, DECT and Z-Wave.
Muszaki adatok
• Connector: SMA plug
• LTE Band: 1-6/8-10/19/25/33-37/39
• Frequency range: 824 - 960, 1920 - 2170, 2400 - 2500 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee, DECT, Z-Wave
• Antenna gain: 2 dBi
• Impedance: 50 Ohm
• Polarisation: vertical
• VSWR: 2.0
• Operating temperature: -40 °C ~ 85 °C
• Colour: black
• Dimensions (LxWxH): ca. 72.0 x 25.2 x 4.8 mm
• Cable category: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 1,8 dB @ 1.8 GHz per meter
• Cable diameter: ca. 2.7 mm
• Cable length incl. connector: ca. 2 m
Rendszerkövetelmények
• Device with free SMA connector
A csomag tartalma
• GSM UMTS LTE WLAN 2.4 GHz antenna
Csomag
• Poly bag
Gyártó: Delock
