  3. StarTech Dual DVI USB +Audio & USB 2.0 Hub

StarTech Dual DVI USB +Audio & USB 2.0 Hub

StarTech Dual DVI USB +Audio & USB 2.0 Hub
USB2.0 bemenet: 4db, USB2.0 kimenet: 4db
Cikkszám: SV431DD2DUA
Ár: 188 520 Ft

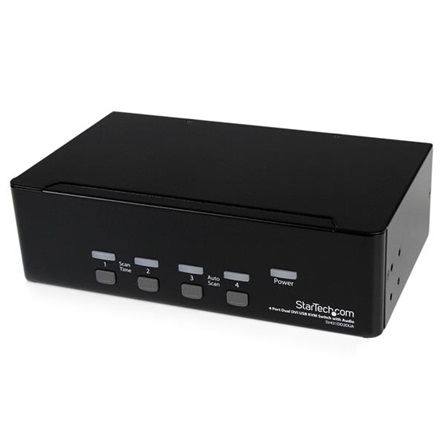

The SV431DD2DUA 4-port Dual DVI USB KVM Switch allows up to four PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.

An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.

Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support if you require assistance identifying your source.

Backed by a StarTech.com 3 year warranty and free lifetime technical support.

The StarTech.com Advantage
  • Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
  • Take full advantage of Dual head video cards by switching up to four machines across two high resolution DVI monitors
  • Absolutely no software or drivers required providing a completely OS independent KVM solution
Hardware
Audio Yes
Cables Included No
Daisy-Chain No
KVM Ports 4
Multi-Monitor Yes
PC Interface USB
PC Video Type DVI
Rack-Mountable Optional
Performance
DVI Support Yes - Single Link
Hot-Key Selection Yes
IP Control No
Maximum Analog Resolutions 2048x1536 @85Hz
Maximum Digital Resolutions 1920x1200 @60Hz
Maximum Number of Users 1
Port Selection Support Push Button and Hotkeys
Connector(s)
Console Interface(s) 2 - 3.5 mm Mini-Jack (3 Position) Female
  2 - DVI-I (29 pin) Female
  4 - USB A (4 pin) Female
Host Connectors 4 - USB B (4 pin) Female
  8 - 3.5 mm Mini-Jack (3 Position) Female
  8 - DVI-I (29 pin) Female
Software
OS Compatibility OS independent; No software or drivers required
Indicators
LED Indicators 1 - Green - Power
  4 - Green - Host Online, Red - Host Selected
Power
Center Tip Polarity Positive
Input Current 0.8A
Input Voltage 110 ~ 240 AC
Output Current 1.5A
Output Voltage 12 DC
Plug Type M
Power Source AC Adapter Included
Environmental
Humidity 90% RH
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Product Depth 5.1 in [130 mm]
Product Height 2.4 in [60 mm]
Product Weight 44.2 oz [1253 g]
Product Width 8.7 in [220 mm]
Packaging Information
Shipping (Package) Weight 4 lb [1.8 kg]
What's in the Box
Included in Package 1 - 4 Port Dual DVI USB KVM
  4 - Rubber Feet
  1 - Universal Power Adapter (US/EU/UK) and AU in Australia
  1 - Instruction Manual
