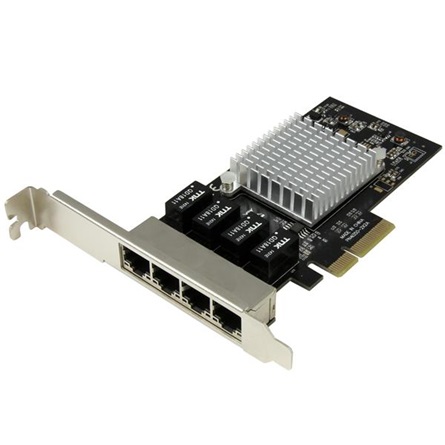

StarTech 1Gb/s PCIe x4 Quad RJ45 hálózati adapter low profile

StarTech 1Gb/s PCIe x4 Quad RJ45 hálózati adapter low profile
RJ45: 4db, PCIe x4: 1db
Cikkszám: ST4000SPEXI
Ár: 144 300 Ft
Here’s a dependable and cost-effective way to add four high-performance Gigabit Ethernet ports to your server or desktop computer, through one PCI Express slot.

Reliable network connectivity with high performance

This Gigabit Ethernet network card features the Intel® I350-AM4 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip provides a number of advanced driver options including IEEE 802.3ad link aggregation / teaming support, which enables you to add additional bandwidth to your system.
Compliant with IEEE 802.3/u/ab standards, the network card provides full support for high-performance, four-channel networking and maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

Cost-effective access to multiple networks

The quad-port Gigabit network card makes it easy to access multiple networks. It offers a cost-effective solution for IT professionals in government, educational, corporate, health care, or business environments where access to multiple networks from numerous workstations is needed. The server adapter card gives you four redundant, independent Gigabit Ethernet ports and it supports advanced features such as Jumbo Frames and VLAN tagging.

Enhanced versatility and efficiency

Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is suitable for many business and enterprise applications - including virtualized environments with multiple operating systems, requiring multiple shared or dedicated NICs. The 4-port Gigabit network card is equipped with Intel® Virtualization Technology for Connectivity (Intel® VT-c) which reduces system latency and improves networking throughput. Four dedicated ports allow you to maximize your virtualized server’s networking efficiency and create a more agile data center.
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card is equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.
The ST4000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID Intel I350-AM4
Industry Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
  IEEE 802.1Q VLAN Tagging
  IEEE 802.3x Full Duplex Flow Control
Ports 4
Performance
Auto MDIX Yes
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Maximum Data Transfer Rate 2000 Mbps (full-duplex)
Connector(s)
Connector Type(s) 4 - PCI Express x4
  4 - RJ-45
Software
OS Compatibility Windows® 10 (32/64), 8 / 8.1 , 7 (32/64)
Windows Server® 2012, 2008 R2,
Linux 2.4.x and later (Tested up to 3.5)
Indicators
LED Indicators 4 - 100/1000 Mbps Indicator
  4 - Link/Activity
Power
Power Consumption 4.4W
Environmental
Humidity 20% ~ 80% RH
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color Black
Product Height 4.7 in [120 mm]
Product Length 5.2 in [132 mm]
Product Weight 3.4 oz [95 g]
Product Width 0.7 in [18 mm]
Packaging Information
Shipping (Package) Weight 5.9 oz [168 g]
What's in the Box
Included in Package 1 - 4 Port Network Card
  1 - Low Profile Bracket
  1 - Instruction Manual
