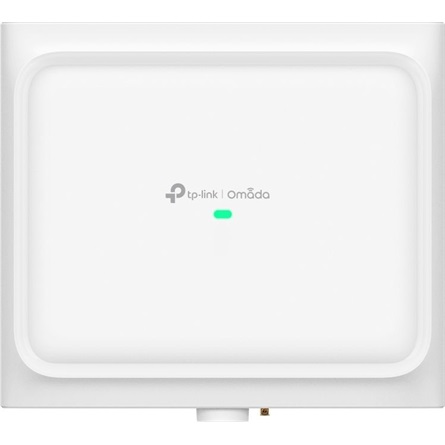

TP-Link EAP772-Outdoor BE11000 kültéri Tri-Band Wi-Fi PoE access point

TP-Link EAP772-Outdoor BE11000 kültéri Tri-Band Wi-Fi PoE access point
11000Mb/s, IEEE 802.11be (Wi-Fi 7), Bluetooth, LAN (2,5Gb/s): 1 port, antennák száma: 6db, 6dBi, átviteli hatótávolság: 150m, Mesh Wi-Fi, energiafelhasználás: 24,05W, smart home, fehér, IP68
Cikkszám: EAP772-OUTDOOR
Ár: 157 960 Ft
Garancia: 5 Év
HARDWARE FEATURES
Interface 1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE)
Button Reset
Power Supply • 802.3at PoE
Max. Power Consumption • EU: 21.5W (for PoE)
• US: 23W (for PoE)
Dimensions ( W x D x H ) 9.1× 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)
Antenna • 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 6 dBi
• 6 GHz: 2× 6 dBi
GNSS L1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signals
Receive sensitivity: -164dBm (tracking)
GPS antennas: Integrated 3dBi omnidirectional antennas
Bluetooth BLE 5.2
Weatherproof Enclosure IP68
Mounting Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 300m2 (3,200ft2) Recommended Omnidirectional Coverage
Concurrent Clients 250+6
Wireless Standards IEEE 802.11be/ax/ac/n/g/b/a
Frequency 2.4 GHz, 5 GHz, 6 GHz
Signal Rate • 802.11be: 8.6 Mbps to 5765 Mbps (MCS0-MCS13, NSS = 1 to 2 HE20/40/80/160/240/320)
• 802.11ax: 8.6 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160)
• 802.11ac: 6.5 Mbps to 2166.7 Mbps (MCS0-MCS9, NSS = 1 to
2 VHT20/40/80/160)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions • 4k-QAM
• Multiple SSlDs
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• MU-MIMO
• MLO
• 320MHz
• Omada Mesh3
• Seamless Roaming(802.11k/v/r)3
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
• Static IP/Dynamic lP
Wireless Security • Captive Portal Authentication3
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE: <20 dBm (2.4 GHz, EIRP), <28 dBm(5 GHz, band 3, EIRP)
• FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz), <25 dBm(6 GHz)
Management Features
Omada App Yes
Centralized Management Yes, through
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes, through
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
OTHERS
Certification CE, FCC, RoHS
Package Content • Access Point EAP772-Outdoor
• Power Cord
• Mounting Kits
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: -30–70 ? (-22–158 ?)
• Storage Temperature: -40–70 ? (-40–158 ?)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
antenna nyeresége 6
cikk kiegészítés IP68
energiafelhasználás 24.05
LAN (2,5Gb/s) 1
Mesh Wi-Fi Van
PoE port 1
smart home Van
Tri-Band Van
Wi-Fi Van
Wi-Fi átviteli sebesség 11000
Wi-Fi jeltípus IEEE 802.11be (Wi-Fi 7)
Wi-Fi titkosítás WPA3;WPA3-Enterprise;WPA2-PSK;WPA2-Enterprise
Gyártó TP-Link
antenna típusa belső
antennák száma 6
átviteli hatótávolság 150
Bluetooth Van
kültéri Van
PoE Van
szín fehér
