  3. MikroTik Chateau LTE12 AC1200 Dual-Band Wi-Fi 4G/LTE router

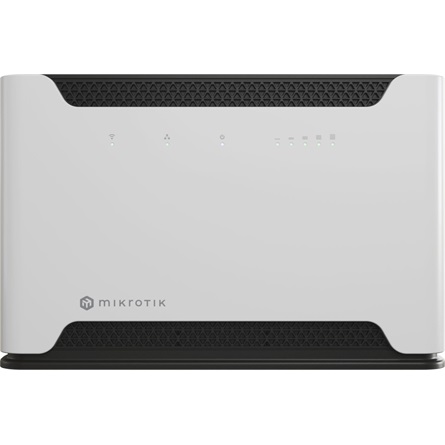

MikroTik Chateau LTE12 AC1200 Dual-Band Wi-Fi 4G/LTE router

MikroTik Chateau LTE12 AC1200 Dual-Band Wi-Fi 4G/LTE router
1167Mb/s, IEEE 802.11a/b/g/n/ac (Wi-Fi 5), LAN (1Gb/s): 5 port, USB2.0, SIM kártya foglalat, 4G/LTE, 4dBi, energiafelhasználás: 24W, fehér
Cikkszám: D53G-5HACD2HND-TC&EG120K-EA
Ár: 83 980 Ft
Garancia: 24 Hónap Megj.: Chateau LTE12 AC (2025), otthoni/kisirodai access point Cat12 LTE kártyával

Specifications

Details
Product code D53G-5HacD2HnD-TC&EG120K-EA
Architecture ARM 32bit
CPU IPQ-4019
CPU core count 4
CPU nominal frequency 448-896 (auto) MHz
Switch chip model IPQ-4019
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 32 MB
Storage type FLASH
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 70°C

Powering

Details
Number of DC inputs 1 (DC jack)
DC jack input Voltage 12-28 V
Max power consumption 24 W
Max power consumption without attachments 18 W
Cooling type Passive

Mobile

Details
3G Category R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands 3 (1800MHz) / 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category 12 (600Mbps Downlink, 150Mbps Uplink)
MIMO DL 4x4
MIMO UL 1x1
LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)
LTE TDD bands 40 (2300MHz) / 41 (2500MHz) / 38 (2600MHz)
TAC 86056104

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 300 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model IPQ-4019
Wireless 2.4 GHz generation Wi-Fi 4
Wireless 5 GHz Max data rate 867 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 4
Wireless 5 GHz chip model IPQ-4019
Wireless 5 GHz generation Wi-Fi 5

Ethernet

Details
10/100/1000 Ethernet ports 5

Peripherals

Details
Number of SIM slots 1 Modem (Micro SIM)
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Number of M.2 slots 1

Other

Details
Mode button Yes

Certification & Approvals

Details
Certification CE, EAC, ROHS
IP 20

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -100
11MBit/s 25 -94
6MBit/s 26 -95
54MBit/s 23 -78
MCS0 26 -96
MCS7 22 -73
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 26 -96
54MBit/s 22 -80
MCS0 26 -96
MCS7 21 -75
MCS9 19 -70

Included parts

  •
