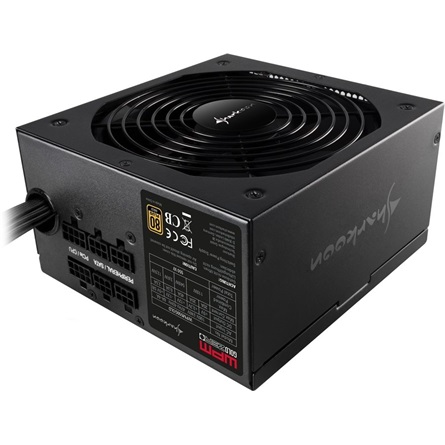

Sharkoon WPM Gold ZERO ATX gaming tápegység 650W 80+ Gold BOX

General
80 PLUS Certification:Gold
Form Factor:ATX 2.3
Continuous Power:650 W
ErP Compliant:?
Active PFC:?
Warranty:2 Years
Technology:LLC + DC/DC
MTBF:Min. 100,000 Hours
Operating Temperature:0 °C - 40 °C
Standby Power Consumption:Max. 0.3 W
Weight incl. Fixed Cables:1.61 kg
Dimensions (L x W x H):150 x 160 x 86 mm
Housing Color:Black

Input
Voltage:100 - 240 VAC
Frequency:47 - 63 Hz
Input Current (110/230 V): 10 A / 5 A

Output
12 V Rail(s):1
Load 3.3 V:20 A
Load 5 V:20 A
Max. Combined Power 3.3 V + 5 V:110 W
Load 12 V1: 53 A
Max. Combined Power 12 V: 636 W
Load 5 VSB: 2.5 A
Load -12 V: 0.3 A

Cable and Connectors
Cable Configuration: Semi-Modular
Flat Cables: ?
Maximum Cable Length: 85 cm
Cable Length Mainboard Connector:55 cm
Cable Length CPU Connector:55 cm
Cable Length PCIe Connector:55 cm
Cable Length to First Peripheral Connector:55 cm
24-Pin Mainboard Connector:1
4+4-Pin CPU Connector:2
6+2-Pin PCIe Connector:4
SATA Connector:9
IDE Connector:3
Floppy Connector:1

Fan
Fan Size:140 mm
Bearing Type:Sleeve Bearing


Protections
OVP (Over Voltage Protection):?
SCP (Short Circuit Protection):?
OPP (Over Power Protection):?

Safety Certifications
CE:?
FCC:?
CB:?
