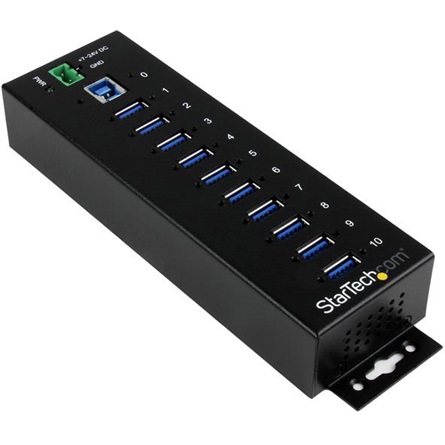

StarTech 10 portos USB3.0 HUB ESD and Surge Protection

USB3.0 kimenet: 10db

Cikkszám: ST1030USBM

Ár: 111 760 Ft

Termék adatlapjának letöltése

Performance
Bus Type	USB 3.0
Chipset ID	Genesys Logic - GL3520
Fast-Charge Port(s)	Yes
Industry Standards	USB Battery Charging Specification Rev. 1.2
	USB 3.0 - Backward compatible with USB 2.0/1.1
Interface	USB 3.0
Ports	10
USB-C Device Port(s)	No
USB-C Host Connection	No
Maximum Data Transfer Rate	5 Gbps
Surge Protection	15kV ESD protection 350 W surge protection
Type and Rate	USB 3.0 - 5 Gbit/s
Connector(s)
Connector Type(s)	10 - USB 3.0 A (9 pin; SuperSpeed) Female
	1 - USB 3.0 B (9 pin; SuperSpeed) Female
	1 - Terminal Block (2 Wire)
Software
OS Compatibility	OS Independent; No additional drivers or software required
Special Notes / Requirements
Note	If connected to a USB 2.0 host port, performance may be limited
	This product is intended for use with terminal block power only – Standard AC adapter not available
System and Cable Requirements	Host computer with an available USB 3.0 port
Indicators
LED Indicators	1 - Power (Green)
Power
Input Voltage	7 ~ 24 DC
Power Source	Terminal Block
Environmental
Humidity	5%~95% RH (Non-condensing)
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Color	Black
Enclosure Type	Steel
Form Factor	Industrial
Product Height	1.2 in [31 mm]
Product Length	7.8 in [198 mm]
Product Weight	12.1 oz [343 g]
Product Width	2.2 in [56 mm]
Packaging Information
Shipping (Package) Weight	20 oz [567 g]
What's in the Box
Included in Package	1 - 10-port industrial USB 3.0 hub
	1 - USB 3.0 host cable
	1 - DIN rail mounting kit
	1 - terminal block (2 wire)
	1 - instruction manual
