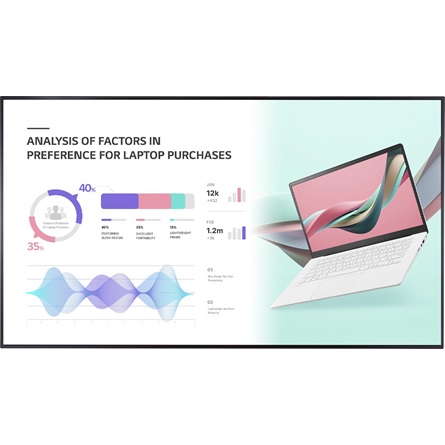

| 86UH5J-H |
| New High Haze UHD Standard Signage |
| |
|
|
| |
| Tech Spec |
| |
| Panel |
| |
- Screen Size: 86"
-
Panel Technology: IPS -
Back Light Type: Edge -
Aspect Ratio: 16 : 9 -
Native Resolution: 3,840 X 2,160 (UHD) -
Refresh Rate: 120 Hz -
Brightness: 500 nit (Typ.) -
Contrast Ratio: 1,100 : 1 -
Dynamic CR: 1,000,000 : 1 -
Color gamut: NTSC 72% -
Viewing Angle (H x V): 178 × 178 -
Color Depth: 1.07 Billon Colors (10 bit) -
Response Time: 8 ms (G to G) -
Surface Treatment: 28% -
Life Time (Typ.): 50,000 Hrs -
Operation Hours (Hours / Days): 24 / 7 -
Portrait / Landscape: Yes / Yes
. |
| |
| |
| Mechanical Specification |
| |
- Bezel Color: Black
-
Bezel Width: 14.3 mm (Even Bezel) -
Weight (Head): 49 kg -
Packed Weight: 72.5 kg (With Pallet) -
Monitor Dimensions (W × H × D): 1,926.2 × 1,097.2 × 60.6 mm (without Handle and LG Logo) -
Carton Dimensions (W × H × D) (Box Outer Size): 2,037 × 1,250 × 285 mm -
Handle: Yes -
VESA™ Standard Mount Interface: 600 × 400 mm
. |
| |
| |
| Special Feature |
| |
- Overlay Touch Compatibility: No
. |
| |
| |
| Environment Conditions |
| |
- Operation Temperature: 0°C to 40°C
-
Operation Humidity: 10% to 80%
. |
| |
| |
| Power Consumption |
| |
- Typ./Max.: 215 W / 280 W (TDB)
-
Smart Energy Saving: 150.5 W (TDB) -
DPM: 0.5 W -
Power off: 0.5 W -
BTU (British Thermal Unit): 733.69 BTU/Hr (Typ.), 955.5 BTU/Hr (Max.) (TDB)
. |
| |
| |
| Certification |
| |
- Safety: CB / NRTL
-
EMC: FCC Class "A" / CE / KC -
ErP / Energy Star: Yes (NewErP) / No (TDB)
. |
| |
| |
| OPS Compatibility |
| |
- OPS Type Compatible: Yes
-
OPS Power Built In: No
. |
| |
| |
| Software Compatibility |
| |
- SuperSign CMS, SuperSign Control / Control+, SuperSign WB, SuperSign Media Editor, Promota (Not Available for EU/CIS), Mobile CMS, LG ConnectedCare
. |
| |
| |
| Connectivity |
| |
- Input: HDMI (2, HDCP 2.2/1.4), HDMI (HDCP 1.4), DP (HDCP 2.2/1.3), DVI-D (HDCP 1.4), Audio In, RS-232C In (4 Pin Phone-jack), RJ45 (LAN), IR In, USB 2.0 (2, Type A)
-
Video / Audio: HDMI Out, Audio Out, External Control (RS-232C Out (4 Pin Phone-jack))
. |
| |
| |
| Sound |
| |
| |
| |
| |
| Language |
| |
- English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues (Europe), Dutch, Czech, Greek, Turkish, Arabic
. |
| |
| |
| Accessory |
| |
- Basic: Remote Controller, Power Cord, QSG, Regulation Book, Phone to RS-232C Gender
-
Optional: OPS Kit (KT-OPSF), LSW640A/B (Wall Mount)
. |
| |
| |
| Key Feature |
| |
- Internal Memory 16 GB, Built-in Wi-Fi, Sensor (Temperature Sensor, Auto Brightness Sensor, Acceleration (Gyro) Sensor), Local Key Operation, webOS 6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready (Except 98”/86”/75”)), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom
. |
| |
