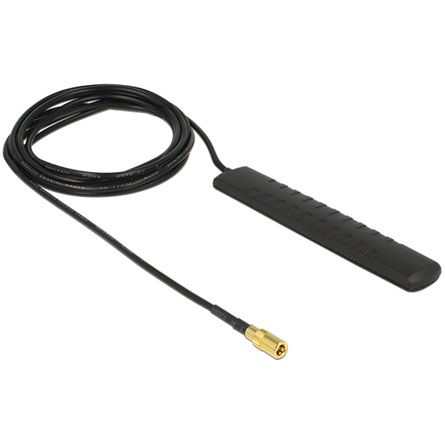

Delock DAB+ DVB-T2 Antenna SMB Plug 20 dBi active omnidirectional black adhesive mounting

Garancia: 4 Hónap Leírás This active antenna by Delock is designed to receive digital broadcasting DAB+ and digital antenna-based television DVB-T2. The integrated amplifier improves the reception signal.
Muszaki adatok
• Connector: SMB plug
• Frequency range:
DAB+: 174 - 237 MHz
DVB-T2: 470 - 690 MHz
• Gain: 20 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Power supply: 5 V
• Current consumption: 14 - 28 mA
• Operating temperature: -40 °C ~ 85 °C
• Cable type: RG-174
• Cable diameter: ca. 2.7 mm
• Cable length: ca. 2 m
• Dimension (LxWxH): ca. 11.27 x 1.97 x 0.65 cm
Rendszerkövetelmények
• DAB+ DVB-T2 receiver with free SMB connector
A csomag tartalma
• DAB+ DVB-T2 antenna
Csomag
• Poly bag
Gyártó: Delock
