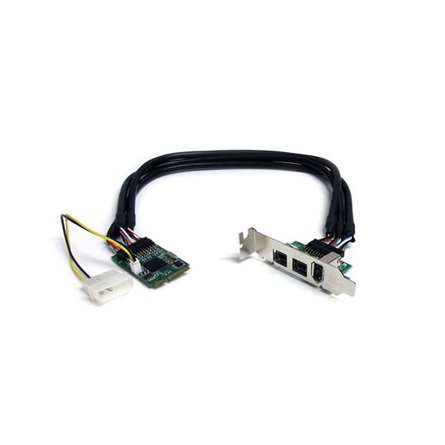

StarTech mini PCI-E x1 1+2 portos FireWire A FireWire B IO vezérlő

illesztés: Mini PCIe x1, FireWire A, FireWire B, low profile
Cikkszám: MPEX1394B3
Ár: 58 630 Ft
The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps.
Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- A Mini PCI Express form factor designed for use in some small form factor and embedded systems
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Bus Type | Mini PCI Express |
Card Type | Low Profile |
Chipset ID | LSI/Agere - FW643 |
Interface | FireWire 800 (1394b) |
Ports | 3 |
Performance | |
---|---|
Type and Rate | FireWire 400 IEEE-1394a - 400 Mbit/s |
FireWire 800 IEEE-1394b - 800 Mbit/s | |
Connector(s) | |
Connector Type(s) | 1 - Mini PCI Express x1 (52 pin) Male |
External Ports | 1 - Firewire 400 (6 pin; IEEE 1394a) Female |
2 - Firewire 800 (9 pin; IEEE 1394b) Female | |
Software | |
OS Compatibility | Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000 Windows Server® 2012, 2008 R2, 2003 Mac OS® 10.10 and later (tested up to 10.11) Linux |
Special Notes / Requirements | |
Note | Ensure computer case has an available expansion card slot |
System and Cable Requirements | Available Mini PCI Express expansion slot (full length) |
Environmental | |
Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Storage Temperature | -54°C to 150°C (-65°F to 302°F) |
Physical Characteristics | |
Product Height | 0.2 in [4 mm] |
Product Length | 2 in [50 mm] |
Product Weight | 0.2 oz [6.8 g] |
Product Width | 1.2 in [30 mm] |
Packaging Information | |
Shipping (Package) Weight | 6.1 oz [173 g] |
What's in the Box | |
Included in Package | 1 - Mini PCI Express FireWire card |
1 - Internal Data Cable | |
1 - 4-pin LP4 Molex Adapter Cable | |
1 - Full Profile Bracket | |
1 - Video Editing Software CD | |
1 - Instruction Manual |
Gyártó | StarTech |
