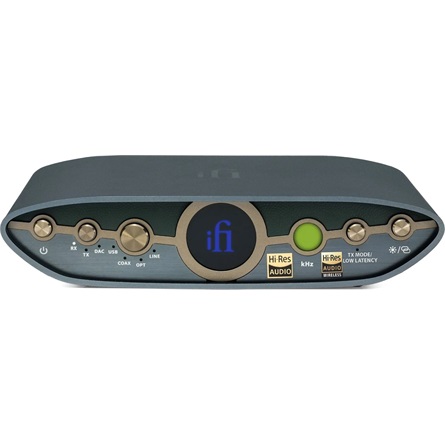

ifi ZEN Blue 3 Bluetooth/USB/Optical/Coaxial/RCA DAC

Jack 4,4mm: 1db, S/PDIF coax, S/PDIF optikai, vonal bemenet, USB3.0: 1db

Cikkszám: ZEN BLUE 3

Ár: 158 340 Ft

Chipsets	Bluetooth	Qualcomm QCC518x Series
	DSP	CT5302
	DAC	ES9023
	Amp	MAX97220
Inputs	RX Mode	Bluetooth 5.4 (aptX Lossless, aptX Adaptive, aptX, LDAC, LHDC/HWA, AAC, SBC)
	TX Mode	USB
		Optical
		Coaxial
		RCA L/R (Analogue)
	DAC Mode	USB
		Optical
		Coaxial
		RCA L/R (Analogue)
Outputs	RX Mode	Optical
		Coaxial
		RCA L/R
		Balanced 4.4mm
	TX Mode	Bluetooth 5.4 (aptX Lossless, aptX Adaptive, aptX, LDAC, LHDC/HWA, AAC, SBC)
	DAC Mode	Optical
		Coaxial
		RCA L/R
		Balanced 4.4mm
Maximum Supported Sample Rate	RX Mode	96kHz/24Bit
	TX Mode	96kHz/24Bit
	DAC Mode	96kHz/24Bit (USB)
		192kHz/24Bit (Optical/Coaxial)
Output Voltage	Balanced 4.4mm	4.1Vrms (0dBFS@1kHz)
	Single-Ended RCA	2.05Vrms (0dBFS@1kHz)
Output Impedance	Balanced 4.4mm	≤102Ω
	Single-Ended RCA	≤51Ω
SNR		109dB
DNR		109dB (0dBFS @ 1kHz) +A
THD+N		< 0.005% (10K Load)@(20-20kHz)
Frequency Response
Power Supply Requirement		USB-C or DC 5V/≥0.5A (centre +ve)
Power Consumption		<1W
Dimensions		158 x 115 x 35 mm (6.2" x 4.5" x 1.4")
Net Weight		447 g (0.99 lbs)

Jack 4,4mm	1
tömeg	447
Gyártó	ifi
csatlakozás	Bluetooth/USB/Optical/Coaxial/RCA
fő paraméter	DAC
S/PDIF coax	1
S/PDIF optikai	1
USB3.0	1
vonal bemenet	1
magasság	35 mm
mélység	115 mm
szélesség	158 mm
