StarTech PCI-E x1 1+2 portos FireWire A FireWire B IO vezérlő

StarTech PCI-E x1 1+2 portos FireWire A FireWire B IO vezérlő
illesztés: PCIe x1, FireWire A, FireWire B, low profile, PCI-E x1: 1db
Cikkszám: PEX1394B3
Ár: 47 170 Ft

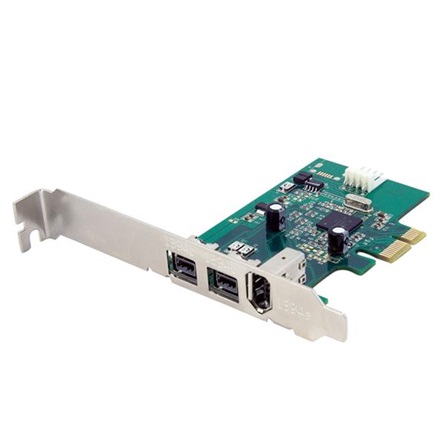

This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2b, 1a card features a native (single chip) PCI Express chipset - resulting in faster, more reliable and cost effective performance than expansion cards that utilize a "bridge" chip.

The StarTech.com Advantage
  • Add 3 FireWire ports to a standard or small form factor (SFF) computer with support for high-powered FireWire devices
  • Utilizes a native PCI Express chipset design rather than a bridge chip, ensuring a fast, reliable and cost-effective FireWire expansion
  • Backed by a StarTech.com lifetime warranty and free lifetime technical suppor
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID LSI/Agere - FW643
Industry Standards IEEE-1394/1394A/1394B
OHCI
PCI 2.2
Interface FireWire 800 (1394b)
Ports 3
Performance
Maximum Data Transfer Rate 800 Mbps
Connector(s)
Connector Type(s) 1 - PCI Express x1 Male
External Ports 1 - Firewire 400 (6 pin; IEEE 1394a) Female
  2 - Firewire 800 (9 pin; IEEE 1394b) Female
Internal Ports 1 - SP4 (4 pin; Small Drive Power) Male
Software
OS Compatibility Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, ME, 98SE
Windows Server® 2012, 2008 R2, 2003
Mac OS® 10.x (tested up to 10.11)
Linux
Special Notes / Requirements
Note The software included with this product supports a "typical" driver install only. Custom driver setup requires software purchase from a 3rd party
System and Cable Requirements PCI Express enabled computer with an available PCI Express x1 slot or higher
Environmental
Humidity 0~90% RH
Operating Temperature 0°C to 70°C (32°F to 158°C)
Storage Temperature -20°C to 90°C (-4°F to 194°C)
Physical Characteristics
Product Height 4.7 in [120 mm]
Product Length 3.5 in [90 mm]
Product Weight 1.8 oz [50 g]
Product Width 0.7 in [18 mm]
Packaging Information
Shipping (Package) Weight 0.5 lb [0.2 kg]
What's in the Box
Included in Package 1 - PCI Express FireWire Card
  1 - FireWire cable
  1 - Low Profile Bracket
  1 - Software CD
  1 - Instruction Manual


Gyártó StarTech
