Delock PCI-E x1 - 2+2 portos SATA3 M.2 NGFF SATA RAID vezérló

Description

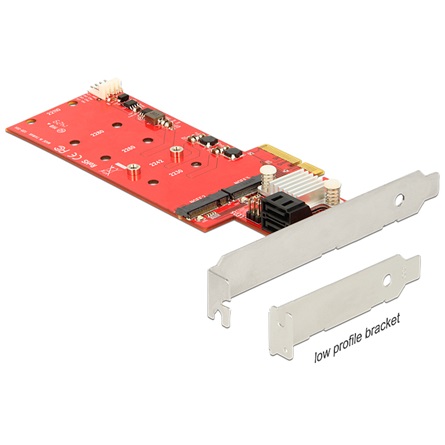

The PCI Express card by Delock expands your PC by two M.2 NGFF slots as well as two SATA connectors. You can connect up to two M.2 NGFF modules in format 22110, 2280, 2260, 2242 and 2230 and even connect up to two SSDs or HDDs. Therefor the card provides you different possible combination for RAID.
Furthermore the card offers a hyperduo function. With this function you can combine an mSATA module and a HDD to use the advantages of both data mediums. The speed of a SSD and the capacity of a HDD.

Specification
• Connector: internal:
  2 x 67 pin M.2 NGFF key B slot
  2 x SATA 6 Gb/s 7 pin female
  1 x PCI Express x4, Rev. 2.0
  1 x 4 pin power connector for additional power supply
• Interface: SATA
• Supports M.2 NGFF modules in format 22110, 2280, 2260, 2242 and 2230
  with key B or key B+M based on SATA
• Maximum height of the components on the module: 1.5 mm,
  double-sided assembly possible
• Data transfer rate up to 6 Gb/s
• Supports RAID 0, 1, 10, HyperDuo Virtual Disk (Safe / Capacity)

System requirements
• Windows Vista/Vista-64/7/7-64/8/8-64/8.1/8.1-64, Linux Kernel 3.2.0
• PC with one free PCI Express x4, x8, x16, x32 slot

Package content
• PCI Express card
• Low profile bracket
• 2 x fixing screw
• Driver CD

Package
• Box
