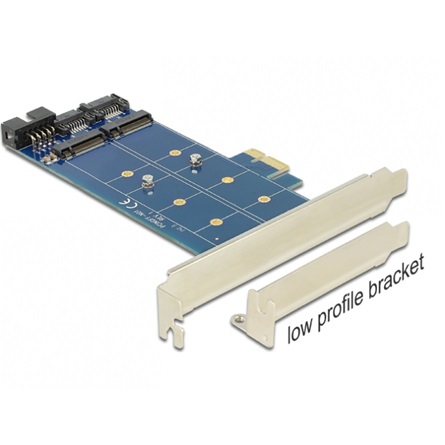

Delock PCI-E x1 2 portos M.2 NGFF adapter

Description
The PCI Express card by Delock expands your PC by two M.2 NGFF slots. You can connect up to two M.2 NGFF modules in format 22110, 2280, 2260, 2242 and 2230. Whether you connect a module based on SATA or based on USB you have to connect the SATA connector or the USB connector with your mainboard.

Specification
• Connector:
  internal:
  2 x 67 pin M.2 NGFF key B slot
  2 x SATA 7 pin female (for modules based on SATA)
  1 x 9 pin USB 2.0 pin header (for modules based on USB)
  1 x PCI Express x1 (only for power supply)
• Interface: SATA / USB
• Supports M.2 NGFF modules in format 22110, 2280, 2260, 2242
  and 2230  with key B or key B+M based on SATA or USB
• Maximum height of the components on the module: 1.35 mm,
  double-sided assembly possible
• Bootable (SATA)
• Data transfer rate up to 6 Gb/s
• OS independent, no driver installation necessary

System requirements
• PC with one free PCI Express slot

Package content
• PCI Express card
• Low profile bracket
• 2 x fixing screw
• 2 x SATA data cable
• 1 x USB pin header cable

Package
• Box
