Delock Delock LTE antenna

Description

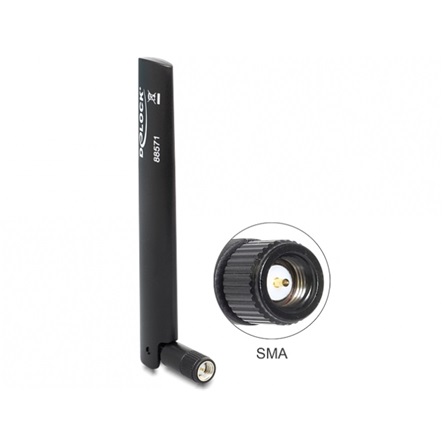

This LTE antenna can be connected to your LTE device with SMA connector in order to receive or to send a signal.

Specification
• LTE Band 1/2/3/7/8/13/17/20
• 1920 ~ 2170 MHz(1),      peak gain   1,7 ~ 2,3 dBi
• 1710 ~ 1880 MHz (3),     peak gain   1,8 ~ 3,0 dBi
• 2500 ~ 2690 MHz (7),     peak gain   2,0 ~ 2,7 dBi
•   880 ~    960 MHz (8),     peak gain   0,6 ~ 0,5 dBi
•   746 ~    787 MHz (13),   peak gain   0,3 ~ 0,9 dBi
•   704 ~    746 MHz (17),   peak gain   0,3 ~ 0,7 dBi
•   791 ~    862 MHz (20),   peak gain - 0,8 ~ 0,2 dBi
• GSM
• UMTS
• WLAN 2,40 GHz
• Bluetooth
• SMAplug screw interface
• With flexible joint
• Polarization: linear, vertical
• Impedance: 50 Ohm
• Operating temperature: -10 °C ~ 55 °C
• ABS UV resistant
• Dimension: with flexible joint       135.00 mm
                       without flexible joint   107.00 mm
• Ø:                 19.00 mm (top)
                       10.20 mm (base SMA)

Package content
• Antenna

Package
• Poly bag
