StarTech VGA -> RCA S-Video F/F konverter fekete

StarTech VGA -> RCA S-Video F/F konverter fekete
Cikkszám: VGA2VID
Ár: 80 400 Ft

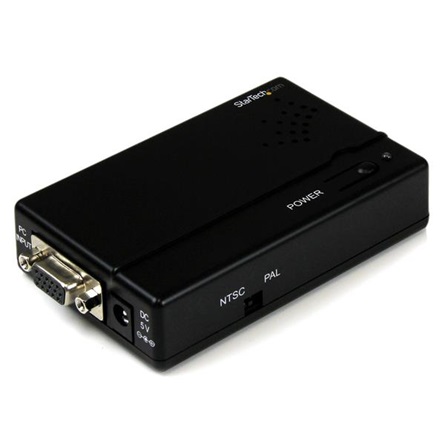

This High Resolution VGA to Composite or S-Video Converter is a simple hardware solution that allows you to convert a VGA/PC video signal into a Composite or S-Video signal for use with a CRT or flat panel display.

The ideal solution for synchronizing monitors with television displays etc., the VGA to Composite/S-Video Converter offers selectable NTSC or PAL format operating modes to ensure compatibility with virtually any configuration.

Hardware
Audio No
Converter Type Format Converter
Performance
MTBF 10,000 Hours
Supported Resolutions PC Input - Up to 1600x1200 @ 60Hz Output - 640x480
Connector(s)
Connector A 1 - VGA (15 pin; High Density D-Sub) Female Input
Connector B 1 - Composite Video (1 x RCA) Female Output
  1 - S-Video (4 pin; Mini-DIN) Female Output
Power
Center Tip Polarity Positive
Input Current 2.6 A
Input Voltage 5
Plug Type M
Power Source AC Adapter Included
Environmental
Operating Temperature 0°C to 70°C (32°F to 158°F)
Physical Characteristics
Color Black
Product Height 18.5 mm [0.7 in]
Product Length 100 mm [3.9 in]
Product Weight 100 g [3.5 oz]
Product Width 64 mm [2.5 in]
Packaging Information
Shipping (Package) Weight 0.4 kg [0.8 lb]
What's in the Box
Included in Package 1 - VGA to Composite/S-Video Converter
  1 - Universal Power Adapter (US/UK/EU/AUS)
  1 - User Manual





Gyártó StarTech
