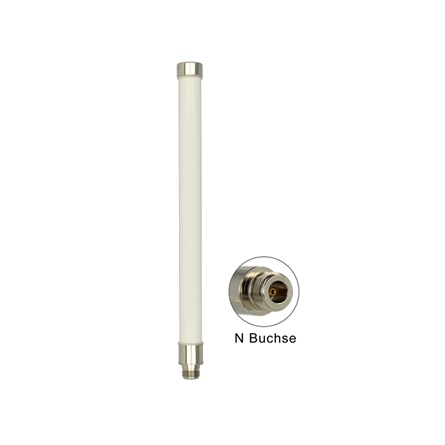

Delock WLAN 802.11 ac/a/h/b/g/n antenna

This WiFi / WLAN antenna is used for transmitting and receiving WiFi signals in accordance with IEEE 802.11 ac/a/h/b/g/n.

Specification
• Connector: N jack
• Frequency range:
                                    2.4000 ~ 2.4835 GHz
                                    5.1500 ~ 5.8750 GHz
• Gain: 6 ~ 8 dBi
• Polarisation: vertical
• Horizontal beam width: 360°
• Vertical beam width: 23°
• Power handling: max. 100 W
• VSWR: 1.5 max.
• Impedance: 50 Ohm
• Housing: glass fiber
• Housing colour: white
• Operation temperature: -40°C ~ 80°C
• Weight: ca. 120 g
• Dimensions (LxØ): ca. 282 x 22.5 mm

System requirements
• Device with a free N connector

Package content
• Antenna
• Pole mounting kit

Package
• Poly bag
