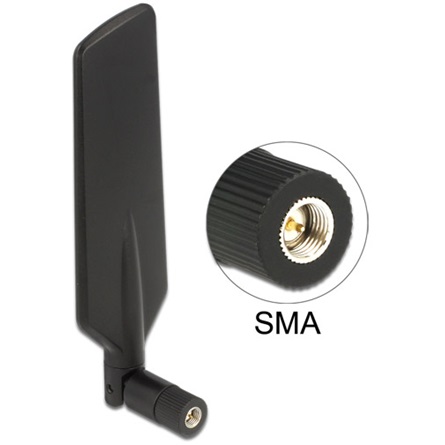

Delock LTE antenna

This LTE antenna can be installed indoors and can be used  for reception of different LTE bands. It is completely Bluetooth, UMTS, GSM, WLAN 2.4GHz and ZigBee compatible.

Specification
• Connector: SMA plug
• LTE Band: 1/2/3/4/5/6/7/8/9/10/12/13/14/15/16/17/18/19/20/23/25
• Frequency range: 698 ~ 960 / 1710 ~ 2700 Mhz
• Bluetooth/GSM/UMTS/WLAN 2.4GHz/ZigBee
• Gain: 0.5~3 dBi
• Impedanz: 50 Ohm
• VSWR: 3.0:1 max.
• Operating temperature: -10°C ~ 55°C
• Housing: ABS UV resistant
• Dimensions (LxWxH): ca. 156,16 x 39,78 x 13,50 mm
• Diameter SMA: 13.5 mm

System requirements
• Device with free SMA connector

Package content
• LTE antenna

Package
• Poly bag
