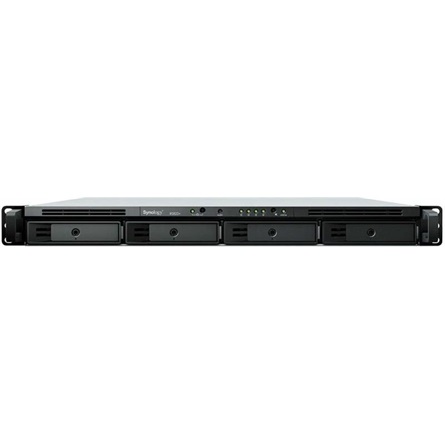

Synology RS822+ NAS

rack, 1U, AMD Ryzen V1500B (4×2,2GHz), 2GB, DDR4 - SODIMM, beépíthető meghajtók száma: 4db, 3,5", SATA3, RAID: RAID 0, 1, 5, 6, 10, JBOD, PCIe x8: 1db, USB3.0: 2db, eSATA, LAN (1Gb/s): 4db, fekete

Cikkszám: RS822+

Ár: 502 560 Ft

Termék adatlapjának letöltése

Garancia: 3 Év

CPU	CPU Model	AMD Ryzen V1500B
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	4-core 2.2 GHz
	Hardware Encryption Engine (AES-NI)
Memory	System Memory	2 GB DDR4 ECC SODIMM
	Memory Module Pre-installed	2 GB (2 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage	Drive Bays	4
	Maximum Drive Bays with Expansion Unit	8 (RX418 x 1)
	Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive
	Notes	"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)
External Ports	RJ-45 1GbE LAN Port*	4 (with Link Aggregation / Failover support)
	USB 3.2 Gen 1 Port*	2
	eSATA Port	1
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x4 link)
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance	Form Factor (RU)	1U
	Size (Height x Width x Depth)	RS822+ :44 mm x 480 mm x 492.6 mmRS822RP+ :44 mm x 480 mm x 518.6 mm
	Weight	RS822+ :6.4 kgRS822RP+ :8.0 kg
	Rack Installation Support*	4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
	Notes	The rail kit is sold separately
Others	System Fan	RS822+ :40 mm x 40 mm x 3 pcsRS822RP+ :40 mm x 40 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Power Recovery
	Noise Level*	RS822+ :27.4 dB(A)RS822RP+ :38.8 dB(A)
	Scheduled Power On / Off
	Wake on LAN / WAN
	Power Supply Unit / Adapter	150 W
	Redundant Power Supply	RS822+ :-RS822RP+ :
	AC Input Power Voltage	100 V to 240 V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	47.69 W (Access) 16.7 W (HDD Hibernation)
	British Thermal Unit	162.83 BTU/hr (Access) 57.02 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 35°C (32°F to 95°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL
Warranty	3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus
	Notes	Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	RS822+ : Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 Quick Installation Guide X 1 RS822RP+ : Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1
Optional Accessories	DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G Expansion Units: RX418 3.5" SATA HDD: HAT5300 2.5" SATA SSD: SAT5210 M.2 SSD & 10GbE Combo Adapter Card: E10M20-T1 M.2 SSD Adapter Card: M2D20 25GbE Network Interface Card: E25G21-F2 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1 Rail Kit Sliding: RKS-02 Rail Kit Mounted: RKM114* VisualStation: VS360HD Surveillance Device License Pack
	Notes	Certain items may not be available in your location. Please contact your local distributors for more information. All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
