Delock 2 portos DVI switch manuális

Description

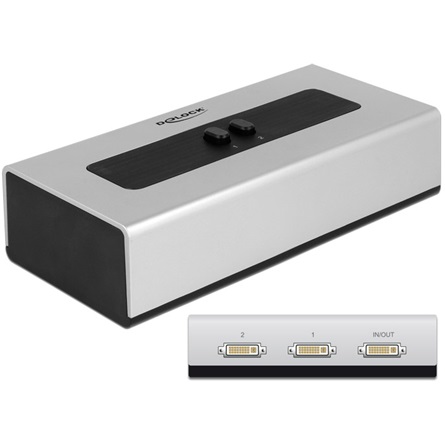

This DVI switch by Delock is a manually bidirectional switch for connecting different devices with DVI port. This switch offers two different applications.

1. You can connect two computers with DVI port to one monitor, TV or beamer etc. with DVI input port. By using the button you can select which device should display the signal.

        2.  You can connect one computer with DVI port to two displays and select the monitor
             which should display the signal by using the button. (Simultaneous output to multiple
             screens is not possible)

Specification
• Connector:
  Function 1
    Input: 2 x DVI 24+5 female
    Output: 1 x DVI 24+5 female
  Function 2
    Input: 1 x DVI 24+5 female
    Output: 2 x DVI 24+5 female
• Supports DVI-D Single Link / VGA not wired
• 2 mechanical buttons
• Supports a resolution up to 1920 x 1200 (depending on the system and the
  connected hardware!)
• Plastic housing
• No external power supply needed
• Dimensions (LxWxH): ca. 183 x 88 x 46 mm (without button)
• Colour: grey / black

System requirements
• PC or notebook with a free DVI port
• DVI connection cables

Package content
• Switch bidirectional
• User manual

Package
• Retail Box
