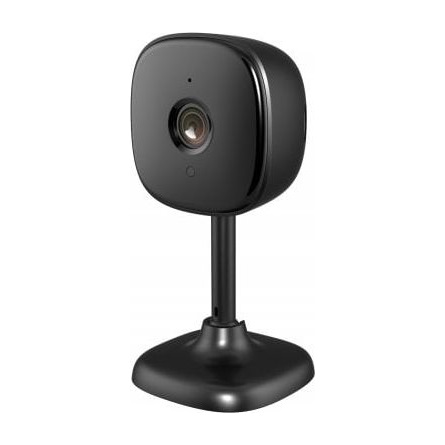

Woox R4208 Wi-Fi Bluetooth smart home IP kamera

PRODUCT DIMENSION

55 x 55 x 112mm

NET WEIGHT

57 gram

POWER CABLE LENGTH

1 meter

HOUSING MATERIAL

ABS + PC

HOUSING COLOUR

BLACK

INGRESS PROTECTION (IP)

IP20

IMAGE SENSOR

1/3" 2Megapixel Progressive CMOS

SENSOR BRAND AND MODEL

SC2336

MAIN CHIPSET BRAND AND MODEL

AK3918EV330L

WIFI + BT CHIPSET BRAND AND MODEL

6012BX

LENS BRAND AND MODEL

PL057F / 0421

LENS FOCAL LENGTH

4MM

APERTURE

F2.0

ANTENNA GAIN (dBi)

1 dBi

POWER SUPPLY

DC 5V 1A, Type C

LIVE STREAM VIDEO RESOLUTION

HD(2304*1296) / SD(640*360)

NOTIFICATION IMAGE RESOLUTION

SD(640*360)

LIVE STREAM EFFECTIVE PIXELS

3MP

OPTICAL PIXEL OR IMAGE INTERPOLATION

2MP interpolated 3MP

ANGLE OF VIEW (H/V/D)

82°(H) / 45°(V) / 92°(D)

MICROPHONE SENSITIVITY

-40db

NOISE REDUCTION

2D NR

AUDIO INPUT

Built-in Mic

AUDIO OUTPUT

Built in 8Ω1W Speaker

AUDIO COMPRESSION

PCM

VIDEO COMPRESSION

H.265

IR CUT

Support

IR ON/OFF CONTROL

Auto

IR DISTANCE

5 meter

NIGHT VISION MODE

Infrared mode

NUMBER OF INFRARED LAMP BEADS

6 pieces

WIRELESS STANDARD

Wi-Fi IEEE 802.11 b/g/n

WIRELESS FREQUENCY

2400 MHz ~ 2483.5 MHz

WIRELESS ENCRYPTION PROTOCOL

WEP/WPA-PSK/WPA2-PSK

WORKING TEMPERATURE

-10°C~50°C

WORKING HUMIDITY

10~95%RH (no condensation)

PAIRING METHOD

BLE mode, QR code mode

TWO-WAY TALK

Support

SOUND DETECTION

Support

MOTION DETECTION

Support

AREA MONITORING DETECTION

Support

ALARM TIMER SETTINGS

Support

PRIVACY MODE

Support

CLOUD STORAGE

Support

WEB RTC

Support

ANTI FLICKER

Support

LOCAL STORAGE SD SLOT

Up to 128GB (FAT32)

HOT SWAPPABLE SD CARD

Support

VOICE SOLUTION CONFIGURATION

Amazon Alexa, Google Assistant

APPROVED CERTIFICATION

CE-RED, ROHS, REACH
