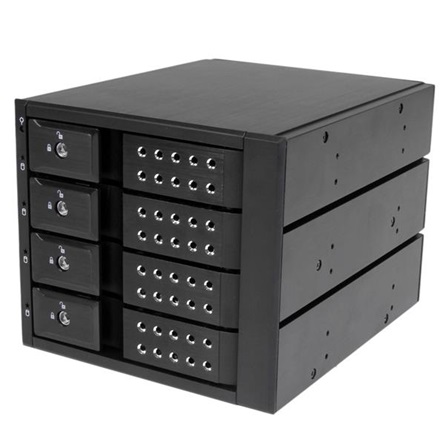

StarTech 3.5" SAS/SATA backplane fekete 4 Bay

beépítési méret: 5,25"

Cikkszám: HSB4SATSASBA

Ár: 74 460 Ft

Performance
Compatible Drive Types (Type and Rate)	SAS & SATA
Drive Installation	Removable
Drive Size	3.5in
Fan Bearing Type	Sleeve Bearing
Fan(s)	Yes
Fans	1 - 70 mm
Interface	SATA
	SAS
Key Lock	Yes
Number of Drives	4
Number of internal 3.5 inch bays	4
Max Drive Capacity	Currently tested with up to 6TB 7200 RPM hard drives
Maximum Data Transfer Rate	6 Gbit/s
Connector(s)
Drive Connectors	4 - SFF-8482 (29 pin; Data & Power; Internal SAS) Receptacle
Host Connectors	2 - SATA Power (15 pin) Receptacle
	4 - SATA (7 pin; Data) Receptacle
Software
OS Compatibility	OS independent; No software or drivers required
Special Notes / Requirements
System and Cable Requirements	Flammability rating: UL94 - V0
Indicators
LED Indicators	1 - Power LED
	1 - Drive 1 Activity LED
	1 - Drive 2 Activity LED
	1 - Drive 3 Activity LED
	1 - Drive 4 Activity LED
Environmental
Humidity	5%~85% RH
Operating Temperature	0°C to 55°C (23°F to 95°F)
Storage Temperature	-20°C to 60°C (-4°F to 122°F)
Physical Characteristics
Product Height	4.9 in [124 mm]
Product Length	7.8 in [197 mm]
Product Weight	2.9 lb [1.3 kg]
Product Width	5.7 in [145 mm]
Packaging Information
Shipping (Package) Weight	3.5 lb [1.6 kg]
What's in the Box
Included in Package	1 - 4 Drive Trayless 3.5in SATA/SAS Mobile Rack
	8 - Installation screws
	2 - Drive bay keys
	4 - SATA cables
	1 - Instruction manual
