  3. D-Link DGS-1510-52XMP Stackable PoE switch

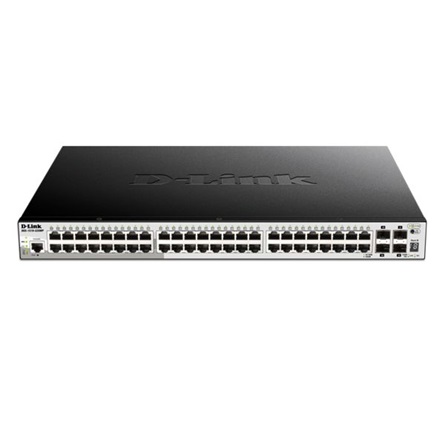

D-Link DGS-1510-52XMP Stackable PoE switch

D-Link DGS-1510-52XMP Stackable PoE switch
LAN (1Gb/s): 48 port, SFP+: 4db, menedzselhető, energiafelhasználás: 487W, szürke-fekete
Cikkszám: DGS-1510-52XMP
Ár: 804 880 Ft
Garancia: 5 Év
  General
Hardware version A1
   • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
Port Standards & Functions  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
   • 802.3ae 10 GbE
   • IEEE 802.3x Flow Control for Full-Duplex Mode
   • Auto-negotiation
Number of Ports 48 10/100/1000 Mbps PoE capable, 4 10G SFP+
Network Cables  • UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.)
Full/Half Duplex  • Full/half duplex for 10/100 Mbps and Gigabit speed
Media Interface Exchange  • Auto or configurable MDI/MDIX
  Performance
Switching Capacity 176 Gbps
Transmission Method  • Store-and-forward
MAC Address Table  • 16,000 entries per device
MAC Address Update  • Up to 512 static MAC entries,
   • Enable/disable auto-learning of MAC addresses
Maximum 64 bytes Packet Forwarding Rate 130.95 Mpps
Packet Buffer Memory 3 MB per device
PoE Standard IEEE 802.3af, 802.3at
PoE Capable Ports Ports 1 to 48: up to 30 W
PoE Power Budget Max 370 W (without DPS-700); Max. 740W (with DPS-700)
  Physical & Environmental
AC Input  • 100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption 486.9 W (PoE on), 58.8 W (PoE off)
Standby Power Consumption  40.1 W
Smart Fan Quantity 4
Acoustics 55.4 dB(A)
Heat Dissipation 1660.33 BTU/hr
Operation Temperature  • 23 to 122 °F (-5 to 50 °C)
Storage Temperature   • -4 to 158 °F (-20 to 70°C)
Operation Humidity  • 0% to 95% non-condensing
Storage Humidity  • 0% to 95% non-condensing
Dimensions  • 17.36 x 9.84 x 1.73 inches (440 x 250 x 44 mm)
       • 19” standard rack mounting width; 1U
Weight 11.93 lbs (5.41 kg)
   • Power/Stacking ID/Fan (per device),
Diagnostic LEDs  • Link/Activity/Speed (per 10/100/1000 Mbps port),
   • Link/Activity/Speed (per Gigabit SFP port),
   • Link/Activity/Speed (per 10G SFP+ port)
Certifications  • CE, FCC, C-Tick, VCCI, BSMI, CCC
   • IPv6 Ready Logo Phase 2 (DGS-1510-20/-28/-28X/-28P/-28XMP only)
Safety  • cUL, CB
MTBF 416,789 hr.
  Software Features
  • Virtual Stacking Support
       • D-Link Single IP Management
       • Up to 32 devices per virtual stack
Stackability      • Up to 20G stacking bandwidth
   • Physical Stacking
       • Supports Duplex Chain/Ring topology
       • Up to 40G stacking bandwidth full duplex
       • Up to 6 units per stack
   • MAC Address Table: up to 16,384
   • Flow Control
       • 802.3x Flow Control
       • HOL Blocking Prevention
   • Jumbo Frame up to 9,216 Bytes
   • IGMP Snooping
       • IGMP v1/v2 Snooping
       • IGMP v3 awareness
       • Supports 512 IGMP groups
       • Supports 128 static multicast addresses
       • IGMP per VLAN
       • Supports IGMP Snooping Querier
       • Host-based IGMP Snooping Fast Leave
L2 Features  • MLD Snooping
       • Supports MLD v1/v2 awareness
       • Supports 512 groups
       • Supports 128 Static Multicast Addresses
       • Per VLAN MLD Snooping
       • Host-based MLD Fast Leave
       • MLD Snooping Querier
   • Spanning Tree Protocol
       • 802.1D STP
       • 802.1w RSTP
       • 802.1s MSTP
   • Loopback Detection
   • 802.3ad Link Aggregation
       • Max. 32 groups per device/8 ports per group
   • Port Mirroring
       • Support 4 mirroring groups
       • One-to-one, many-to-one, flow-based (ACL) mirroring
   • Multicast Filtering
       • Forwards all unregistered groups
       • Filters all unregistered groups
   • ERPS (Ethernet Ring Protection Switching)
   • 802.1Q Tagged VLAN
   • 4K VLAN Groups
   • Configurable VID: 0~4094
   • GVRP
VLAN  • Asymmetric VLAN
   • Auto Voice VLAN
   • Auto Surveillance VLAN
   • MAC-based VLAN
   • Protocol-based VLAN
   • CoS based on
        • 802.1p priority
       • VLAN
       • MAC address
       • Ether type
       • IP address
       • DSCP
       • Protocol type
       • TCP/UDP port number
       • DSCP of IPv6 Traffic Class
Quality of Service (QoS)      • IPv6 flow label
   • 802.1p Quality of Service
   • Queue Handling
       • Strict Priority Queue (SPQ)
       • Weighted Round Robin (WRR)
       • Deficit Round Robin (DRR)
       • SPQ + WRR
   • 8 queues per port
   • Bandwidth Control
       • Port-based (Ingress/Egress, min. granularity for 10/100/1000 BASE-T ports is 64 Kb/s)
   • ARP
       • 256 Static ARP
       • Supports Gratuitous ARP
   • IPv6 Neighbor Discovery (ND)
   • 16 IP Interfaces
L3 Features  • Default Routing
   • Static Routing
       • 64 IPv4 Static Route Entries
       • 32 IPv6 Static Route Entries
   • UDP helper
   • ACL based on
       • 802.1p priority
       • VLAN
       • MAC address
       • Ether type
       • IP address
       • DSCP
       • Protocol type
       • TCP/UDP port number
Access Control List (ACL)      • DSCP of IPv6 Traffic Class
       • IPv6 flow label
   • ACL Actions
       • Permit
       • Deny
   • Max. 256 access list
   • Max. 768 rules
   • Single or multiple ports (each rule)
   • Time-based ACL
   • ACL Statistics
   • Port Security
       • Supports up to 128 MAC addresses per port
   • Broadcast/Multicast/Unicast Storm Control
   • Dynamic ARP Inspection
   • D-Link Safeguard Engine
   • DHCP Server Screening
   • ARP Spoofing Prevention
       • Max. 64 entries
   • SSH
       • Supports v2
       • Supports IPv4/IPv6
   • BPDU Attack Protection
   • DoS Attack Prevention
Security  • SSL
       • Supports v1/v2/v3
       • Supports IPv4/IPv6
   • Traffic Segmentation
   • IP-MAC-Port Binding
       • DHCP snooping
       • IP Source Guard
       • Dynamic ARP inspection
       • IPv6 DHCP Guard
       • IPv6 RA Guard
       • IPv6 Snooping
       • IPv6 Source Guard
       • IPv6 ND Inspection
  Optional Gigabit SFP Transceivers
   • DEM-310GT 1000BASE-LX Transceiver, single-mode, 10 km
   • DEM-311GT 1000BASE-SX Transceiver, multimode, 550 m
   • DGS-712 1000BASE-T to SFP Transceiver
  Optional 10GbE SFP+ Transceivers
   • DEM-431XT 10GBASE-SR Multimode SFP+ Optical Transceiver, 0 to 70C
   • DEM-431XT-DD 10GBASE-SR Multimode SFP+ Optical Transceiver with DDM, 0 to 70C
   • DEM-432XT 10GBASE-LR Single-mode SFP+ Optical Transceiver, 0 to 70C
   • DEM-432XT-DD 10GBASE-LR Single-mode SFP+ Optical Transceiver with DDM, 0 to 70C
  Optional SFP+ Direct Attach Copper Stacking Cables
   • DEM-CB100S 10-GbE SFP+ 1 m Direct Attach Cable
   • DEM-CB300S 10-GbE SFP+ 3 m Direct Attach Cable
  Optional Redundant Power Supplies

 • DPS-700  AC Redundant Power Supply for DGS-1510-52XMP only
