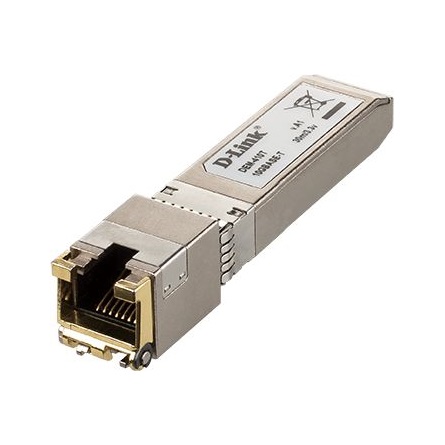

D-Link DEM-410T 10GBASE-T 10Gb/s SFP+ RJ45 transceiver modul

Features

• Hot Pluggable
• MSA Compliant: SFF-8431, SFF-8432
• RoHS Compliant

Specification

Compliant Standard

• IEEE 802.3an 10GBase-T IEEE
• 802.3ab 1000BASE-T

Transceiver Type

• RJ45

Max. Transmit Distance

• 10GBASE-T up to 30m with Cat 6a
• 1000BASE-T up to 100m with Cat 5e

Speed

• 10Gbps

Operating Power (V)

• 3.3V

Max Input Current (mA)

• 780mA

MTBF (hours)

• 217,186 hours

Operation Temperature (°C)

• 0~65?

Storage Temperature (°C)

• -40~85?

Operating Humidity (%)

• 5%~95%

Storage Humidity (%)

• 5%~95%

Dimension ( W x D x H mm)

• 13.7mm x 68mm x 8.5mm

Weight (g)

• 20g

Emission (EMI)

• FCC Class B, CE Class B VCCI, Class B

Safety

• LVD
