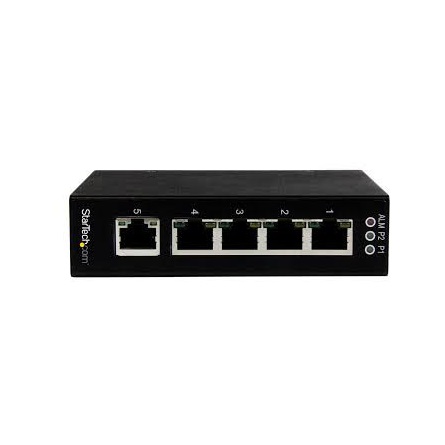

StarTech Industrial DIN Rail switch
Cikkszám: IES51000
Ár: 122 240 Ft
The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.
Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.
Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Hardware | |
|---|---|
| Industry Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TX |
| IEEE 802.1p QoS, IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3ad Link Aggregation | |
| IP30 (Enclosure) | |
| Interface | RJ45 (Gigabit Ethernet) |
| Ports | 5 |
| Performance | |
| Auto MDIX | Yes |
| Buffer Size | 128 KB |
| Compatible Networks | 10/100/1000 Mbps |
| Flow Control | Half-duplex back-pressure and IEEE802.3x full-duplex |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Maximum Cable Length | 328 ft [100 m] |
| Maximum Data Transfer Rate | 2 Gbps (Full-Duplex) |
| Switching Architecture | Store-and-Forward |
| Connector(s) | |
| Connector Type(s) | 5 - RJ-45 Female |
| 1 - Terminal Block (6 Wire) Female | |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Indicators | |
| LED Indicators | 1 - P1 (Power) indicator |
| 1 - P2 (Power) indicator | |
| 1 - ALM (Alarm) indicator | |
| 5 - Link / Act | |
| 5 - Speed indicator | |
| Power | |
| Input Voltage | 12 ~ 58 DC |
| Power Consumption | 3.63W Max. |
| Power Source | Terminal Block |
| Environmental | |
| Humidity | 5~95% RH (Non-Condensing) |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 1.1 in [28 mm] |
| Product Length | 4.4 in [111 mm] |
| Product Weight | 11.6 oz [328 g] |
| Product Width | 3.5 in [89 mm] |
| Packaging Information | |
| Shipping (Package) Weight | 18.5 oz [523 g] |
| What's in the Box | |
| Included in Package | 1 - Industrial Ethernet Switch |
| 2 - Wall-Mount Brackets | |
| 1 - DIN-Rail Clip | |
| 4 - Screws | |
| 1 - Terminal Block | |
| 1 - Instruction Manual | |
| Gyártó | StarTech |
