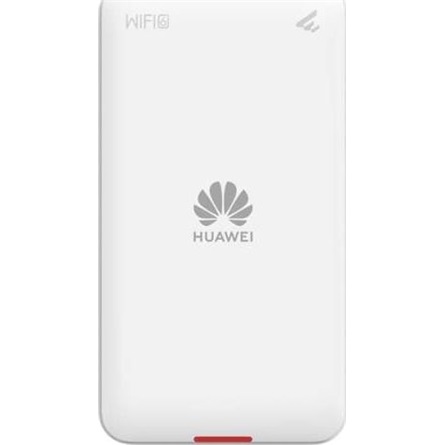

  3. Huawei eKit Engine Wireless Access Point AP263 Dual-Band Wi-Fi PoE access point

Huawei eKit Engine Wireless Access Point AP263 Dual-Band Wi-Fi PoE access point

Huawei eKit Engine Wireless Access Point AP263 Dual-Band Wi-Fi PoE access point
2975Mb/s, IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6), LAN (1Gb/s): 2 port, antennák száma: 2db, 4dBi, energiafelhasználás: 12W, fehér
Cikkszám: 50084981
Ár: 69 670 Ft
Garancia: 3 Év
Integrated fixed device Y
First supported version V200R021C01
Installation Type Desk,Wall,Ceiling,Junction Box
Dimensions without packaging (H x W x D) [mm(in.)] 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 75 mm x 205 mm x 115 mm (2.95 in. x 8.07 in. x 4.53 in.)
Weight without packaging [kg(lb)] 0.320 kg (0.705 lb)
Weight with packaging [kg(lb)] 0.542 kg (1.195 lb)
CPU 2-core, 1.0 GHz
Memory DDR3L: 512 MB
Storage NAND Flash 256 MB
Console port BLE console
Maximum power consumption [W] 12
Maximum heat dissipation [BTU/hour] 41
Power supply mode DC adapter,PoE
Rated input voltage [V] 12 V
Input voltage range [V] 12±10% PoE: 802.3at/af
Service port surge protection [kV] PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 6 kV (1.2/50 us, 42 ohms), criterion B
Maximum number of physical ports on the entire device GE (RJ45) x 2, 10M/100M/1000M auto-sensing
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (If the altitude is in the range of 1800 m to 5000 m, the temperature decreases by 1°C or 1.8°F every time the altitude increases by 300 m.)
Storage temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH] 5% RH to 95% RH
Long-term operating altitude [m(ft.)] –60 m to +5000 m (–196.85 ft to +16404.20 ft)
Atmospheric pressure [kPa] 53kPa - 106kPa ETSI 300 019-2-3
Ground floating ground
USB USB 2.0 (supporting 5 W power supply)
BLE BLE5.0
Radio number 2
Operating frequency band 2.4GHz,5GHz
MIMO spatial streams Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Wi-Fi standard 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax
Radio interface Built-in smart antennas
Antenna gain 2.4G: 2 dBi/chain (peak value) 1 dBi (combined gain) 5G: 3 dBi/chain (peak value) 1 dBi (combined gain) BLE: 4 dBi
Maximum transmit power 2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power) BLE: < 10 dBm
3G/LTE filte (ACC) Not supported
MTBF [year] 69.7
MTTR [hour] 0.5
Frequency stability [ppm] +/-20
802.3at power supply description No function is limited.
802.3af power supply description The USB function is unavailable.
DC power supply description No function is limited.
Dual-Band Van
energiafelhasználás 12
LAN (1Gb/s) 2
PoE port 1
tömeg 320
Wi-Fi átviteli sebesség 2975
Wi-Fi jeltípus IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Gyártó Huawei
antenna nyeresége 4
antenna típusa belső
antennák száma 2
PoE Van
WI-FI Van
szín fehér
