Navilock NL-602U u-blox6 USB GPS vevő fekete

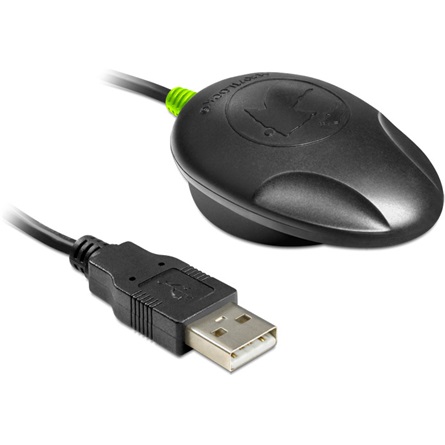

DescriptionThe USB 2.0 GNSS Receiver based on u-blox 6 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation.
Specification• Connector: USB 2.0 Type-A male
• Chipset: u-blox 6 UBX-G6000-BT
• Frequency:
  GPS: L1, 1575.4200 MHz
• Accepts the signals of up to 50 satellites at the same time
• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• Update rate: up to 5 Hz
• Sensibility max. -162 dBm
• IPX6 protection class
• Magnetic, non-slip on the bottom
• LED-indicator for GPS status
• Operating temperature: -20 °C ~ 60 °C
• Power supply: 5 V DC
• Current consumption: max. 80 mA
• Cold start in ca. 25 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS
• Cable length: ca. 1.5 m
• Dimensions (LxWxH): ca. 65 x 45 x 22 mm

System requirements• Windows XP/Vista/7/8/8.1/10, Linux Kernel 2.6
• PC or laptop with a free USB Type-A port
• For devices with OTG function and optional OTG adapter: Windows 10

Package content• USB 2.0 receiver
• Navilock support CD incl. driver and user manual

Package• Retail Box
