StarTech 4 portos 1U USB2.0 KVM switch

USB2.0 bemenet: 2db, D-Sub bemenet: 4db, D-Sub kimenet: 1db

Cikkszám: SV431DUSBU

Ár: 120 650 Ft

Termék adatlapjának letöltése

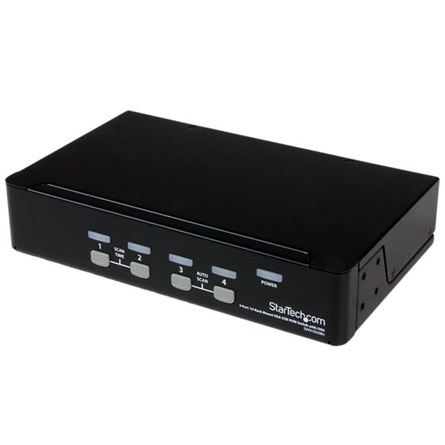

The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor).

Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.

Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Hardware
Audio	No
Cables Included	No
Daisy-Chain	Yes
KVM Ports	4
Multi-Monitor	No
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	Optional
Performance
DVI Support	No
Hot-Key Selection	Yes
IP Control	No
Maximum Analog Resolutions	1920 x 1440@60Hz (1920 x 1200@60Hz - Wide Screen)
Maximum Number of Users	1
Port Selection Support	Push Button, Hotkeys, and OSD (On Screen Display)
Wide Screen Supported	Yes
Connector(s)
Console Interface(s)	1 - VGA (15 pin; High Density D-Sub) Female
	2 - USB A (4 pin) Female
Host Connectors	4 - VGA (15 pin; High Density D-Sub) Female
Software
OS Compatibility	OS independent; No software or drivers required
Indicators
LED Indicators	1 - Green - Power
	4 - Green - Online PC
	4 - Red - Selected PC
Power
Center Tip Polarity	Positive
Input Current	0.2A
Input Voltage	110 ~ 240 AC
Output Current	0.6A
Output Voltage	9 DC
Plug Type	M
Power Source	AC Adapter Included
Environmental
Humidity	80% RH
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color	Black
Enclosure Type	Steel
Product Depth	5.1 in [130 mm]
Product Height	1.7 in [43 mm]
Product Weight	52.9 oz [1500 g]
Product Width	8.7 in [220 mm]
Packaging Information
Shipping (Package) Weight	3.6 lb [1.6 kg]
What's in the Box
Included in Package	1 - 4-port KVM switch
	4 - foot pads
	1 - universal power adapter (NA/EU/UK/AU)
	1 - instruction manual

D-Sub bemenet	4
D-Sub kimenet	1
tömeg	1500
Gyártó	StarTech
beépítési méret	1U
külső tápegység	Van
portok száma	4
USB2.0	4
USB2.0 bemenet	2
magasság	43 mm
mélység	130 mm
szélesség	220 mm
szín	fekete
