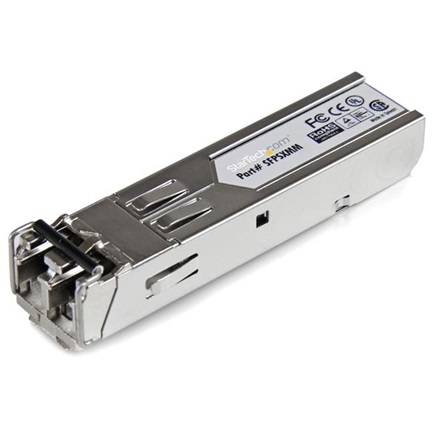

StarTech Gigabit 850nm Multi Mode LC 550m Transceiver mudul

The SFPSXMM Gigabit 850nm Multi Mode SFP Fiber Optical Transceiver - LC 550m is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to increase performance and connectivity of your fiber-connected network devices.

Using a short wavelength (850nm) VCSEL laser diode, enabling a maximum cable distance of 550m (0.3 miles) over multi mode fiber, this Small Form Factor Pluggable (SFP) Gigabit Multi Mode module can be installed into any fiber networking devices with an MSA compliant SFP port, providing a simple solution to upgrade existing network devices to connect to remote locations using LC terminated multimode fiber.

Delivering convenience and scalability, the optical transceiver allows you to install the multimode LC module without interrupting network traffic or requiring a device reboot.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.



Hardware
Industry Standards	IEEE 802.3z 1000BASE-SX
Performance
Compatible Networks	1000 Mbps (1 Gbps)
DDM	No
Fiber Operating Mode	Full-Duplex
Fiber Type	Multi Mode
Max Transfer Distance	550 m (1804 ft)
Maximum Data Transfer Rate	1.25 Gbps
Wavelength	850nm
Connector(s)
Remote Unit Connectors	1 - Fiber Optic LC Duplex Female
Environmental
Humidity	5 to 95% RH
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 85°F)
Physical Characteristics
Product Height	0.4 in [9 mm]
Product Length	2.2 in [55 mm]
Product Weight	0 lb [0 kg]
Product Width	0.5 in [13 mm]
Packaging Information
Shipping (Package) Weight	0.1 lb [0 kg]
What's in the Box
Included in Package	1 - SFP Multimode LC Transceiver
