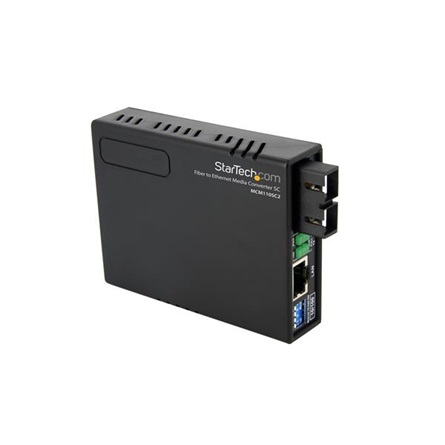

StarTech 10/100 Ethernet to SC Multi Mode Fiber Ethernet media konverter
átviteli hatótávolság: 2000m
Cikkszám: MCM110SC2EU
Ár: 36 850 Ft
The MCM110SC2EU 10/100 Multi Mode Fiber Ethernet Media Converter (SC, 2 km) creates a cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals, to extend an Ethernet network connection over an SC-terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile GbE Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
| Hardware | |
|---|---|
| Industry Standards | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-FX | |
| IEEE 802.3u 100BASE-TX | |
| PoE | No |
| WDM | No |
| Performance | |
| Fiber Operating Mode | Half/Full-Duplex |
| Fiber Type | Multi Mode |
| Max Transfer Distance | 2 km (1.2 mi) |
| Maximum Data Transfer Rate | 10/100Mbps |
| MTBF | 65,000 Hours |
| Wavelength | 1310nm |
| Connector(s) | |
| Local Unit Connectors | 1 - RJ-45 Female |
| Remote Unit Connectors | 1 - Fiber Optic SC Duplex Female |
| Indicators | |
| LED Indicators | 1 - Ethernet Link & Activity (ON - Fiber Link ok, Blinking - Activity on Fiber Link) |
| 1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault | |
| 1 - Fiber Link & Activity (On - Fiber Link ok, Blinking - Activity on Fiber Link) | |
| 1 - Full ( Full duplex / Half duplex) | |
| 1 - Power | |
| 1 - Speed (10 or 100 Mbps) | |
| Power | |
| Center Tip Polarity | Positive |
| Input Voltage | 230 AC |
| Output Current | 0.2A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Source | AC Adapter Included |
| Environmental | |
| Humidity | 10~90% RH |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Physical Characteristics | |
| Color | Black |
| Product Height | 20 mm [0.8 in] |
| Product Length | 95 mm [3.7 in] |
| Product Weight | 90.5 g [3.2 oz] |
| Product Width | 75 mm [3 in] |
| Packaging Information | |
| Shipping (Package) Weight | 0.3 kg [0.6 lb] |
| What's in the Box | |
| Included in Package | 1 - Media Converter |
| 1 - EU power plug | |
| 1 - UK power plug | |
| 1 - Power Adapter | |
| 1 - User's Manual | |
| hálózati csatlakozás | SC Duplex |
| Gyártó | StarTech |
