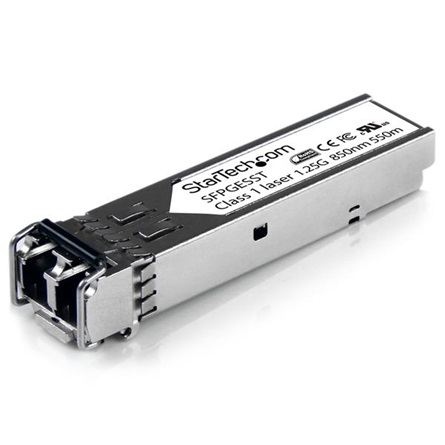

StarTech miniGBIC 10/100/1000Mbps SFP Transceiver MM LC w/ DDM – 550m

Cikkszám: SFPGESST

Ár: 21 710 Ft

Termék adatlapjának letöltése

The SFPGESST Cisco® Compatible Gigabit Fiber SFP Transceiver Module MM LC - 550m (1804 ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your Gigabit fiber networking equipment or fiber media converter.

Supporting data rates up to 1.25 Gbps as well as Digital Diagnostics Monitoring (DDM), this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.

This 850nm multi-mode SFP module is compatible with the Cisco SFP-GE-S transceiver.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.+

Hardware
Industry Standards	IEEE 802.3z 1000BASE-SX
WDM	No
Performance
Compatible Networks	1000 Mbps (1 Gbps)
DDM	Yes
Fiber Operating Mode	Half/Full-Duplex
Fiber Type	Multi Mode
Max Transfer Distance	550 m (1804 ft)
Maximum Data Transfer Rate	1.25 Gbps
Wavelength	850nm
Connector(s)
Local Unit Connectors	1 - Fiber Optic LC Duplex Female
Special Notes / Requirements
Note	For use in Gigabit fiber networking equipment and media converters
System and Cable Requirements	MSA or Cisco compliant SFP port
Environmental
Humidity	30~70% RH
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 85°F)
Physical Characteristics
Product Height	0.4 in [10 mm]
Product Length	2.4 in [60 mm]
Product Weight	0.6 oz [17 g]
Product Width	0.5 in [12 mm]
Packaging Information
Shipping (Package) Weight	0.1 lb [0 kg]
What's in the Box
Included in Package	1 - 1.25 Gbps Multimode LC SFP
