  3. StarTech PCI-E x1 4 portos soros port IO vezérlő

StarTech PCI-E x1 4 portos soros port IO vezérlő

StarTech PCI-E x1 4 portos soros port IO vezérlő
illesztés: PCIe x1, soros port: 4db, low profile, RS232
Cikkszám: PEX4S553
Ár: 69 670 Ft

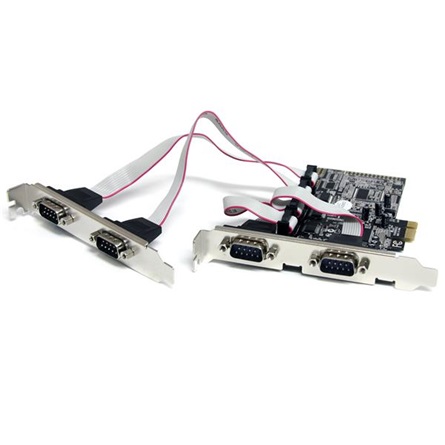

The PEX4S553 4-Port Native PCI Express RS232 Serial Adapter Card with 16550 UART lets you add 4 RS232 (DB9) serial ports, using a single PCI Express expansion slot.
Based on a native single-chip design, this 4-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge-chip serial cards.
The RS232 Serial Adapter Card includes 4 half-height/low-profile brackets, allowing the card to be installed into almost any PC case, regardless of form factor.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
  • Native single-chip, single lane PCI Express chipset delivers true PCIe performance, up to 48% more efficient than bridge chip designs
  • Standard and low profile/half-height brackets included to ensure fitment in any system
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Chipset ID ASIX/MosChip - MCS9904CV-AA
Interface Serial
Port Style Integrated on Card
Ports 4
Performance
Data Bits 5, 6, 7, 8
FIFO 256 bytes
Max Baud Rate 128 Kbps
MTBF 26,280 Hours
Parity 5, 6, 7, 8
Serial Protocol RS-232
Connector(s)
Connector Type(s) 1 - PCI Express x1 Male
External Ports 4 - DB-9 (9 pin; D-Sub) Male
Software
Microsoft WHQL Certified Yes
OS Compatibility Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
Windows Server® 2012, 2008 R2, 2003
Mac OS® 10.10
Linux
Environmental
Humidity 5~85% RH
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (4°F to 140°F)
Physical Characteristics
Color Green
Product Height 0.7 in [19 mm]
Product Length 4.7 in [120 mm]
Product Weight 2.8 oz [80 g]
Product Width 5.1 in [130 mm]
Packaging Information
Shipping (Package) Weight 0.5 lb [0.2 kg]
What's in the Box
Included in Package 1 - 4 Port PCI-Express RS-232 Serial Card
  1 - Bracket with 2 DB9 male ports
  4 - Low Profile Brackets
  1 - Driver CD
  1 - Instruction Manual
