StarTech PCI 2 portos soros port IO vezérlő

illesztés: PCI, soros port: 2db, low profile, PCI: 1db, RS422/485

Cikkszám: PCI2S4851050

Ár: 70 660 Ft

Termék adatlapjának letöltése

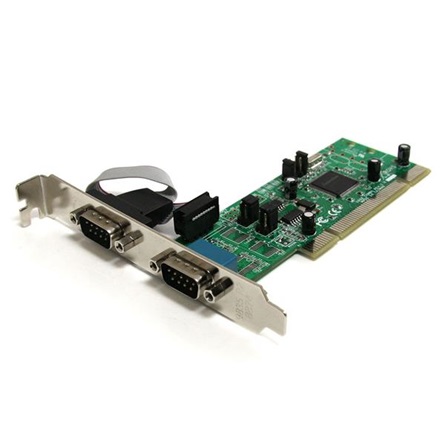

The PCI2S4851050 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds two DB9 RS422/RS485 serial ports, using a single PCI expansion slot.

The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU.

With the included standard and low profile/half-height brackets, this PCI serial expansion card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots.

Backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

Much larger FIFO buffer than standard serial cards (256 byte vs. 32 or 64 byte) minimizes data loss and optimizes host efficiency
A simple jumper change allows you to select either RS422 or RS485 serial interface formats specific to your application
Standard and low profile/half-height bracket included, ensuring easy installation into almost any system

Performance
Bus Type	PCI / PCI-X (5 / 3.3V)
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	SystemBase -SB16C1052PCI
Industry Standards	PCI Local Bus Specification 2.3 PCI Power Management 1.1
Interface	Serial
Port Style	Integrated on Card
Ports	2
Data Bits	5, 6, 7, 8
FIFO	256 Bytes
Flow Control	Xon, Xoff, RTS#, CTS#
Max Baud Rate	128 Kbps
Parity	Even, Odd, or No Parity
Serial Protocol	RS-422/485
Stop Bits	1, 1.5, 2
Connector(s)
Connector Type(s)	1 - PCI / PCI-X (Universal 3.3 & 5V; 32-bit) Male
External Ports	2 - DB-9 (9 pin; D-Sub) Male
Software
OS Compatibility	Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64) Windows Server® 2012, 2008 R2, 2003, 2000 (32/64) Linux 2.4.x / 2.6.x
Environmental
Humidity	5~85% RH
Operating Temperature	-10°C to 80°C (14°F to 176°F)
Storage Temperature	-20°C to 100°C (-4°F to 212°F)
Physical Characteristics
Product Height	1.8 in [45 mm]
Product Length	4.7 in [120 mm]
Product Weight	2 oz [58 g]
Product Width	0.6 in [15 mm]
Packaging Information
Shipping (Package) Weight	0.3 lb [0.2 kg]
What's in the Box
Included in Package	1 - 2 port PCI RS422/485 card
	2 - Low profile (half-height) brackets
	1 - Driver CD
	1 - User Manual
