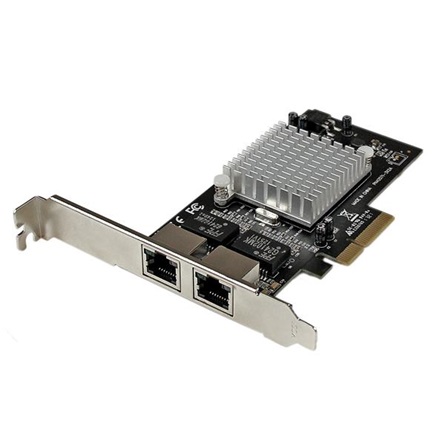

StarTech Dual Port PCI-E x4 10/100/1000Mbps hálózati szerver adapter low profile

RJ45: 2db, PCIe x4: 1db

Cikkszám: ST2000SPEXI

Ár: 120 020 Ft

Termék adatlapjának letöltése

The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.

This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.

Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Double the network bandwidth to a single system through link aggregation / teaming support
Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging
Maximize your virtualized server networking efficiency with dedicated ports

Performance
Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Intel - I350-AM2
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
	PCI Express Base Specification 2.1
Interface	RJ45 (Gigabit Ethernet)
Port Style	Integrated on Card
Ports	2
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Jumbo Frame Support	9K max.
Maximum Data Transfer Rate	2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
Supported Protocols	IEEE 802.3ad (link aggregation), IEEE 1588 (time sync) / 802.1AS, IEEE 802.1q (VLAN tagging)
Connector(s)
Connector Type(s)	1 - PCI Express x4 Male
External Ports	2 - RJ-45 Female
Software
OS Compatibility	Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64) Windows Server® 2012, 2008 R2, 2003(32/64) Linux 2.4.x/ 2.6.x / 3.x (Tested up to 3.5)
Special Notes / Requirements
Note	Creating Intel® ANS teams and VLANs on Microsoft Windows® 10 is currently not supported. As a result, when created, teams and VLANs do not pass traffic. We expect that ANS will be supported on Microsoft Windows 10 client in a future release.
System and Cable Requirements	Available PCI Express x4 or higher (x8, x16) slot
Indicators
LED Indicators	2 - 10/100/1000 Mbps Indicator
	2 - Link / Activity
Environmental
Humidity	5~85% RH
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Product Height	4.8 in [121 mm]
Product Length	2.6 in [67 mm]
Product Weight	2.8 oz [80 g]
Product Width	0.7 in [19 mm]
Packaging Information
Shipping (Package) Weight	5.9 oz [166 g]
What's in the Box
Included in Package	1 - 2 Port Network Card
	1 - Low Profile Bracket
	1 - Driver CD
	1 - Instruction Manual
