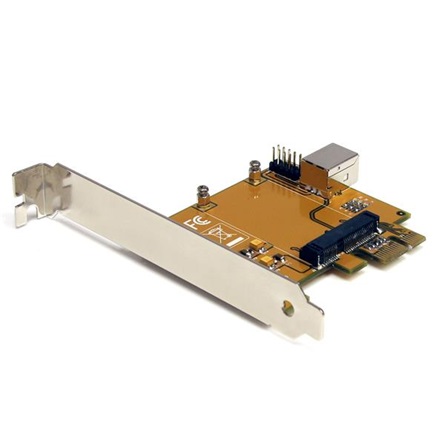

StarTech PCI-E x1 mini PCI-E x1 adapter
illesztés: PCIe x1, Mini PCIe x1: 1db
Cikkszám: PEX2MPEX
Ár: 25 520 Ft
The PEX2MPEX PCI Express to Mini PCI Express Adapter Card enables Mini PCI Express cards (Mini Cards) to be used in a standard PCI Express card slot. These PCIe Mini Cards, which are typically designed for laptops or small form factor ITX computers, can be used normally inside more conventional desktop computers.
The adapter card features a complete PCIe to Mini PCIe pass-through design that eliminates data transfer rate bottlenecks, while the included full and low profile installation brackets makes this adapter card compatible with most computer chassis.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Enables all types of full-length mini PCI Express cards to fit into a standard PCI Express card slot
- Includes both a full and low profile/half-height installation bracket for installation into almost any computer chassis
- Backed by a StarTech.com 2-Year warranty and free lifetime technical support
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Interface | Mini PCI Express |
| Connector(s) | |
|---|---|
| Connector Type(s) | 1 - PCI Express x1 Male |
| Internal Ports | 1 - IDC (10 pin; Motherboard Header) Male |
| 1 - Mini PCI Express x1 (52 pin) Slot Female | |
| 1 - USB B (4 pin) Female | |
| Special Notes / Requirements | |
| System and Cable Requirements | PCI Express expansion slot |
| Indicators | |
| LED Indicators | 1 - Power |
| Environmental | |
| Humidity | 5% ~ 95% RH |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Physical Characteristics | |
| Product Height | 2.7 in [68 mm] |
| Product Length | 3 in [75 mm] |
| Product Weight | 1.6 oz [46 g] |
| Product Width | 0.6 in [14 mm] |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 5.5 oz [156 g] |
| What's in the Box | |
| Included in Package | 1 - PCIe to Mini PCIe Adapter |
| 1 - Low Profile Bracket | |
| 2 - Mounting screws | |
| 1 - Instruction Manual | |
| Gyártó | StarTech |
