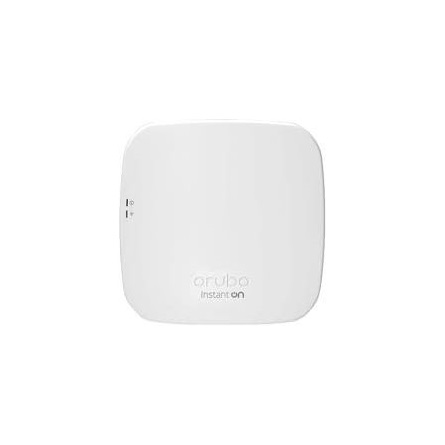

HP Aruba Instant On AP12 (RW) Wave2 Dual-Band Wi-Fi PoE access point

Radios

• Dual radio for simultaneous dual-band operation
• 5 GHz 802.11ac 3x3 MIMO for up to 1,300 Mbps Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
• 2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

Interfaces

• 1 x Uplink Gigabit Ethernet port, with POE-in support (802.3af)
• 1 x DC power connector (12V)
• 1 x Bluetooth Low Energy (BLE) radio
• 2 x LED status indicators
• 1 x Reset/LED control button
• 1 x Kensington security slot

Physical characteristics

• Dimensions: 34 x 157 x 157 mm (1.3 x 6.2 x 6.2), H x W x D
• Weight: 483 g (1.1 lb)

Power

• Power over Ethernet (POE): 802.3af (class 3)
• DC power (12V)
• Power sources are sold separately

Environmental and reliability

• Operating temperature: 0° C to +50° C (+32° F to +122° F)
• Humidity:  5% to 93% non-condensing
• MTBF: 1,116khrs (127yrs) at +25° C

Management

• Instant On mobile application (Android and iOS)
• Cloud Portal: Portal.ArubaInstantOn.com

Industry certifications

• UL 2043 plenum rating
• EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
• Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE).
