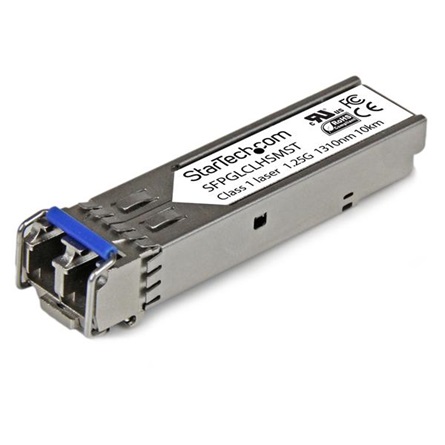

StarTech Cisco GLC-LH-SM Compatible 1Gb/s SFP LC Duplex Single-mode transceiver modul

The SFPGLCLHSMST Cisco Compatible Gigabit Fiber SFP Transceiver Module SM/MM LC is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade an SFP slot on your Gigabit fiber networking equipment or fiber media converter.
Supporting a 1000Base-LX/LH network with data rates up to 1.25 Gbps, this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. The SFP transceiver supports both single-mode and multi-mode LC ports, with a single-mode distance of 10 km (6.2 mi.) and multi-mode distance of 1.5 km (.9 mi.). Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 1310nm single-mode/multi-mode SFP module is compatible with the Cisco GLC-LH-SM transceiver. Also a perfect accessory for the StarTech.com PCI Express Open SFP NIC (PEX1000SFP), or Gigabit POE Open SFP Media Converter (ET1110PSE) products.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Hardware | |
---|---|
Industry Standards | IEEE 802.3z 1000BASE-LX/LH |
WDM | No |
Performance | |
Compatible Networks | 1000 Mbps (1 Gbps) |
DDM | No |
Fiber Operating Mode | Half/Full-Duplex |
Fiber Type | Single Mode |
Multi Mode | |
Max Transfer Distance | 10 km (6.2 mi) |
Maximum Data Transfer Rate | 1.25 Gbps |
Wavelength | 1310nm |
Connector(s) | |
Local Unit Connectors | 1 - Fiber Optic LC Duplex Female |
Special Notes / Requirements | |
Note | For use in Gigabit fiber networking equipment and media converters |
System and Cable Requirements | MSA or Cisco compliant SFP port |
Environmental | |
Humidity | 30~70% RH |
Operating Temperature | 0°C to 70°C (32°F to 158°F) |
Storage Temperature | -40°C to 85°C (-40°F to 85°F) |
Physical Characteristics | |
Product Height | 0.4 in [10 mm] |
Product Length | 2.4 in [60 mm] |
Product Weight | 0.6 oz [18 g] |
Product Width | 0.5 in [12 mm] |
Packaging Information | |
Shipping (Package) Weight | 1.6 oz [45 g] |
What's in the Box | |
Included in Package | 1 - 1.25 Gbps Single Mode LC SFP |
hálózati csatlakozás | LC Duplex |
hullámhossz | 1310 |
SFP | 1 |
száloptika típusa | Single-mode |
Gyártó | StarTech |
átviteli hatótávolság | 10000 |
átviteli sebesség | 1Gb/s |
csatlakozás | SFP |
