StarTech Hard Drive Duplicator 2.5/3.5" SATA dokkoló

beépíthető meghajtók száma: 2db, SATA: 2db, külső tápegység

Cikkszám: SATDUP11IMG

Ár: 227 990 Ft

Termék adatlapjának letöltése

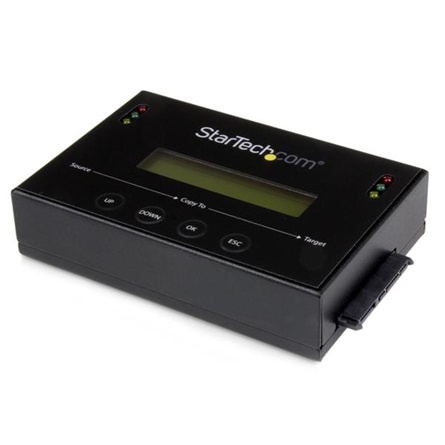

The SATDUP11IMG standalone SATA hard drive duplicator, lets you create an exact duplicate of a SATA hard drive (HDD) / solid state drive (SSD), or create a single backup library drive containing multiple images you can copy to additional drives at any time.

Fast, Simple Drive Duplication

Reduce clutter with the SATDUP11IMG eliminating the number of drives required when creating backups of multiple unique drive images. Using a single backup library drive, you can store several unique drive images on a single SSD / HDD, ensuring fast duplication at 6 GBpm and minimal clutter.This is an ideal solution if you frequently re-image different computer systems, because it means you'll only have to carry a single backup library drive to restore multiple drive images onto different systems.

Hassle-free Performance

The versatile duplicator also offers standard one-to-one drive duplication in three different modes: file & system copy, all partitions copy and whole copy. This is ideal for one-time drive duplication, eliminating the hassle of creating a drive image for a one-time project.

Intuitive Operation

With an easy-to-read LCD display and intuitive four-button menu operation, the SATDUP11IMG ensures hassle-free setup and control. The menu gives you push-button access to many value-added features that ensure simple task management such as: drive to drive duplication, drive to Image library backup and restore, and many more. It also provides numerous advanced setup options for experienced users.

For added compatibility with different drive types in duplication and quick erase applications, the SATDUP11IMG supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:

2.5/3.5in IDE drives - SAT2IDEADP
mSATA drives - SAT2MSAT25
M.2 (NGFF) drives - SAT32M225

The SATDUP11IMG is TAA compliant and backed by a 2-year StarTech.com warranty and lifetime technical support.

Hardware
Compatible Drive Types (Type and Rate)	SATA
Drive Size	2.5in & 3.5in
Interface	SATA
Number of Drives	2
Performance
Max Drive Capacity	Currently tested with up to 6TB 7200 RPM 3.5" hard drives per bay and 1TB 7200 RPM 2.5" hard drives per bay
Maximum Data Transfer Rate	6 Gbps
Type and Rate	SATA III (6 Gbps)
Connector(s)
Drive Connectors	2 - SATA Data & Power Combo (7+15 pin) Receptacle
Software
OS Compatibility	OS independent; No software or drivers required
Special Notes / Requirements
Note	For duplication, the destination drive must be of equal or greater size than the source drive.
Indicators
LED Indicators	1 - Source Drive Power Indicator
	1 - Source Drive Activity Indicator
	1 - Source Drive Error Indicator
	1 - Destination Drive Power Indicator
	1 - Destination Drive Activity Indicator
	1 - Destination Drive Error Indicator
	1 - LCD Display
Power
Center Tip Polarity	Positive
Input Current	1.4A
Input Voltage	100 ~ 240 AC
Output Current	5A
Output Voltage	12 DC
Power Source	AC Adapter Included
Environmental
Humidity	20% ~ 80%
Operating Temperature	5°C to 45°C (41°F to 113°F)
Storage Temperature	-20°C to -85°C (-4°F to 185°F)
Physical Characteristics
Product Height	1.1 in [28 mm]
Product Length	5.1 in [129 mm]
Product Weight	12.4 oz [350 g]
Product Width	3 in [77 mm]
Packaging Information
Shipping (Package) Weight	3.8 lb [1.7 kg]
What's in the Box
Included in Package	1 - 1:1 HDD/SSD Duplicator
	1 - Long SATA cable
	2 - Short SATA cable
	1 - eSATA + 12V power cable (Type M power connector)
	1 - eSATA + 5V power cable (Type F power connector)
	2 - HDD/SSD pads
	1 - Universal power adapter (UK/NA/EU)
	1 - Instruction Manual
