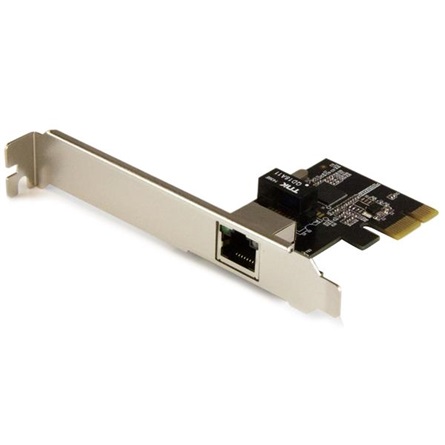

StarTech 1Gb/s PCIe x4 RJ45 hálózati adapter low profile

RJ45: 1db, PCIe x4: 1db
Cikkszám: ST1000SPEXI
Ár: 25 190 Ft
Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot, to help deliver a high-performance and cost-effective network solution.
The performance and reliability you demand in network connectivity
This Gigabit Ethernet network card utilizes the Intel® I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
A versatile and cost-effective solution
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It’s a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.
Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed. The ST1000SPEXI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Bus Type | PCI Express |
Card Type | Standard Profile (LP bracket incl.) |
Chipset ID | Intel I210-AT |
Industry Standards | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T |
IEEE 802.1Q VLAN Tagging | |
IEEE 802.3x Full Duplex Flow Control | |
Ports | 1 |
Performance | |
---|---|
Auto MDIX | Yes |
Compatible Networks | 10/100/1000 Mbps |
Full Duplex Support | Yes |
Jumbo Frame Support | 9K max. |
Maximum Data Transfer Rate | 2000 Mbps (full-duplex) |
Connector(s) | |
Connector Type(s) | 1 - PCI Express x4 Male |
1 - RJ-45 Female | |
Software | |
OS Compatibility | Windows® 10 (32/64), 8 / 8.1 , 7 (32/64) Windows Server® 2012 R2, 2008 R2 Linux 2.4.x and later (Tested up to 3.5) |
Special Notes / Requirements | |
System and Cable Requirements | Available PCI Express expansion card slot |
Indicators | |
LED Indicators | 1 - 100/1000 Mbps Indicator |
1 - Link/Activity | |
Power | |
Power Consumption | Max 0.8W |
Environmental | |
Humidity | 20% ~ 80% RH |
Operating Temperature | 5°C to 50°C (41°F to 122°F) |
Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Physical Characteristics | |
Color | Black |
Product Height | 0.7 in [18 mm] |
Product Length | 4.7 in [120 mm] |
Product Weight | 1.2 oz [35 g] |
Product Width | 2.6 in [66 mm] |
Packaging Information | |
Shipping (Package) Weight | 3.7 oz [104 g] |
What's in the Box | |
Included in Package | 1 - 1 Port Network Card |
1 - Low Profile Bracket | |
1 - Instruction Manual |
hálózati csatlakozás | RJ45 |
PCIe x4 | 1 |
Gyártó | StarTech |
átviteli sebesség | 1Gb/s |
csatlakozás | PCIe x4 |
low profile | Van |
RJ45 | 1 |
