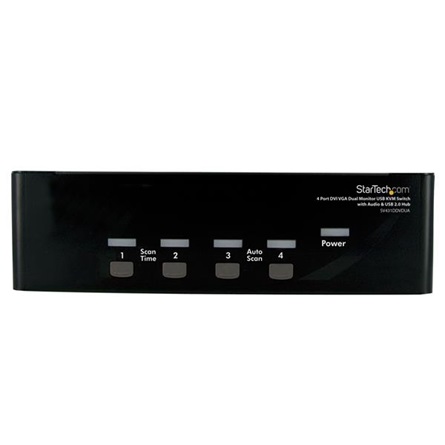

StarTech USB DVI 4 portos KVM switch + Audio & USB 2.0 Hub

USB2.0 bemenet: 4db, USB2.0 kimenet: 4db

Cikkszám: SV431DDVDUA

Ár: 196 750 Ft

Termék adatlapjának letöltése

The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.

This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.

The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.

NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration
Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices
Absolutely no software or drivers required providing a completely OS independent KVM solution

Performance
Audio	Yes
Cables Included	No
Daisy-Chain	No
KVM Ports	4
Multi-Monitor	Yes
PC Interface	USB
PC Video Type	DVI+VGA
Rack-Mountable	Optional
DVI Support	Yes - Single Link
Hot-Key Selection	Yes
IP Control	No
Maximum Analog Resolutions	1920 x 1400
Maximum Digital Resolutions	1920 x 1200
Maximum Number of Users	1
Port Selection Support	Push Button and Hotkeys
Connector(s)
Console Interface(s)	1 - DVI-I (29 pin) Female
	1 - VGA (15 pin; High Density D-Sub) Female
	2 - 3.5 mm Mini-Jack (3 Position) Female
	4 - USB A (4 pin) Female
Host Connectors	4 - 3.5 mm Mini-Jack (3 Position) Female
	4 - DVI-I (29 pin) Female
	4 - USB B (4 pin) Female
	4 - VGA (15 pin; High Density D-Sub) Female
Software
OS Compatibility	OS independent; No software or drivers required
Special Notes / Requirements
Note	While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support for assistance identifying your source.
Indicators
LED Indicators	1 - Green - Power
	2 - Green - PC Detected
	2 - Red - PC Indicator
Power
Center Tip Polarity	Positive
Input Current	0.8A
Input Voltage	110 ~ 240 AC
Output Current	1.5A
Output Voltage	12 DC
Plug Type	M
Power Source	AC Adapter Included
Environmental
Humidity	80% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color	Black
Enclosure Type	Steel
Product Depth	5.1 in [130 mm]
Product Height	2.4 in [60 mm]
Product Length	6.4 in [163 mm]
Product Weight	43.6 oz [1236 g]
Product Width	8.7 in [220 mm]
Packaging Information
Shipping (Package) Weight	4 lb [1.8 kg]
What's in the Box
Included in Package	1 - Four Port KVM Switch
	1 - Rubber Feet
	1 - Universal Power Adapter (US/EU/UK) and AU in Australia
	1 - User Manual

tömeg	1236
Gyártó	StarTech
cikknév kiegészítés	+ Audio & USB 2.0 Hub
DVI bemenet	4
DVI kimenet	1
hang bemenet	4
hang kimenet	2
külső tápegység	Van
portok száma	4
USB2.0 bemenet	4
USB2.0 kimenet	4
magasság	60 mm
mélység	130 mm
szélesség	220 mm
szín	fekete
