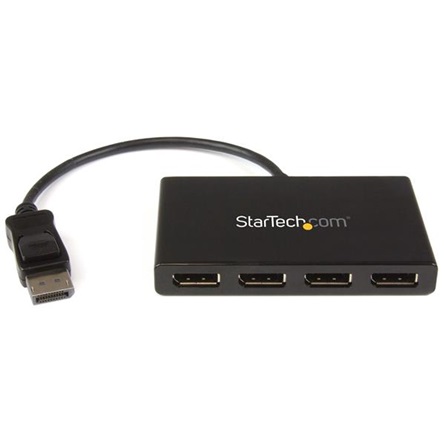

StarTech MST DisplayPort 4 portos HUB

DisplayPort bemenet: 1db, DisplayPort kimenet: 4db
Cikkszám: MSTDP124DP
Ár: 58 540 Ft
This MST hub lets you connect four monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.
Increase productivity with multiple screens
The newest generations of computers are more portable than ever, which often means that you’re left with fewer video outputs and smaller integrated screens. This MST hub solves both of these problems by letting you connect four additional displays to your computer, which makes multitasking much easier.

Connect to any display
With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

Configure your displays for any environment
Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displays for remote viewing applications such as digital signage.

Enjoy amazing video quality, without draining system resources
MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.
Note: When using a DisplayPort 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays. Resolution limitations apply.
The MSTDP124DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup. Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.
Average resolution bandwidth allocation:
1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%
Note: Exceeding 100% will reduce functionality.
Examples of supported resolution configurations:
Screen 1 Resolution | Screen 2 Resolution | Screen 3 Resolution | Screen 4 Resolution | Total % of Bandwidth |
---|---|---|---|---|
1920x1080 @60hz (22%) | 1920x1080 @60hz (22%) | 1920x1080 @60hz (22%) | 1920x1080 @60hz (22%) | 88% |
1920x1200 @60hz (30%) | 1920x1080 @60hz (22%) | 1920x1080 @60hz (22%) | 1920x1080 @60hz (22%) | 96% |
3840x2160 @30hz (38%) | 1920x1080 @60hz (22%) | 1920x1080 @60hz (22%) | off | 82% |
3840x2160 @30hz (38%) | 1920x1200 @30hz (30%) | 1920x1080 @60hz (22%) | off | 90% |
Examples of unsupported resolution configurations
Screen 1 Resolution | Screen 2 Resolution | Screen 3 Resolution | Screen 4 Resolution | Total % of Bandwidth |
---|---|---|---|---|
2560x1600 @60hz (38%) | 2560x1600 @60hz (38%) | 1920x1200 @60hz (30%) | 1920x1200 @60hz (30%) | 136% |
3840x2160 @30hz (38%) | 2560x1600 @60hz (38%) | 1920x1200 @60hz (30%) | 1920x1200 @60hz (30%) | 136% |
3840x2160 @30hz (38%) | 2560x1600 @60hz (38%) | 2560x1440 @60hz (35%) | 1920x1200 @60hz (30%) | 141% |
3840x2160 @30hz (38%) | 3840x2160 @30hz (38%) | 3840x2160 @30hz (38%) | off | 114% |
Common Customer Questions
Applications
- Build a four display video wall to present entertainment to your patrons with an impressive display at a restaurant or shopping center
- Use one screen for reference data such as websites, while composing a report on another screen
- Dock your DP 1.2 device and add four high-resolution displays to your workstation
- Create a panoramic video wall for DisplayPort digital signage applications
- Edit images, video or audio clips across four additional displays in any orientation or resolution
- Perfect for spanning a spreadsheet/worksheet across additional displays, to avoid side-scrolling
Product Numbers
TechData Dis | 11776612 |
ASI Distribution USA | 169367 |
D and H | MSTDP124DP |
Ingram Micro USA | 1A1772 |
Synnex US | STA-MSTDP124DP |
UPC Code | 065030860581 |
* Product appearance and specifications are subject to change without notice.
* Same day shipping is only available for orders shipping within the United States.
Warranty Information | |
---|---|
Warranty | 2 Years |
Hardware | |
Audio | Yes |
Chipset ID | STDP4320 |
Converter Type | MST Hub |
Output Signal | DisplayPort |
Ports | 4 |
Performance | |
Maximum Digital Resolutions | 3840 x 2160 @30hz |
Supported Resolutions | 1024x768 1280x720 (High-definition 720p) 1920x1080 (High-definition 1080p) 1920x1200 2560x1440 2560x1600 3840 x 2160 (Ultra HD 4K) @30hz |
Wide Screen Supported | Yes |
Connector(s) | |
Connector A | 1 - DisplayPort (20 pin) Male Input |
Connector B | 4 - DisplayPort (20 pin) Female Output |
Software | |
OS Compatibility | Windows 10 (32/64) Windows 8/8.1 (32/64) Windows 7(32/64) |
Power | |
Center Tip Polarity | Positive |
Input Current | 0.5 A |
Input Voltage | 110 ~ 240 AC |
Output Current | 3A |
Output Voltage | 5 DC |
Plug Type | N |
Power Source | AC Adapter Included |
Environmental | |
Operating Temperature | 0°C to 45°C (32°F to 113°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
Physical Characteristics | |
Color | Black |
Enclosure Type | Plastic |
Product Height | 0.6 in [15 mm] |
Product Length | 4.1 in [105 mm] |
Product Weight | 4.5 oz [127 g] |
Product Width | 2.6 in [65 mm] |
Packaging Information | |
Shipping (Package) Weight | 1.2 lb [0.5 kg] |
What's in the Box | |
Included in Package | 1 - 4-Port Multi Monitor DisplayPort™ MST Hub |
1 - Universal power adapter (NA/EU/UK/AUS) | |
1 - Quick install guide |
tömeg | 500 |
Gyártó | StarTech |
DisplayPort bemenet | 1 |
DisplayPort kimenet | 4 |
portok száma | 4 |
magasság | 15 mm |
mélység | 65 mm |
szélesség | 105 mm |
szín | fekete |
